LC1D12U7 - Schneider Electric

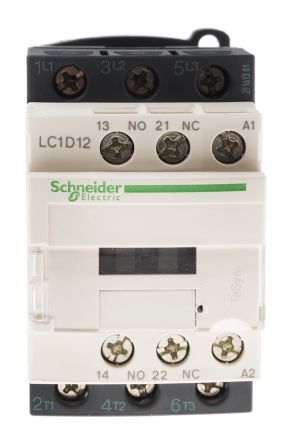

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

LC1D12U7
Manufacturer

Schneider Electric
ChipWorker Part#

CW19053465
Category

Industrial Relay
Description

SCHNEIDER ELECTRIC LC1D12U7 Contactor, 690VAC, 3Pole, 3PST-NO, DIN Rail, 25A, 240V
Documentation

Datasheet

LC1D12U7 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

LC1D12U7 Specifications

Attribute	Attribute Value

Part Number	LC1D12U7
Manufacturer	Schneider Electric
ChipWorker Part#	CW19053465
Category	Industrial Relay
Documentation	Datasheet
Mounting Style	DIN Rail
Operating Voltage	600 VAC
Current Rating	12 A
Power Rating	5.5 kW
Contacts Type	3PST-NO
Contact Current Rating	12 A
Coil Voltage	240 VAC
Coil Voltage (AC)	240 V
Operating Temperature (Max)	60 ℃
Operating Temperature (Min)	-5 ℃
Voltage Rating	690VAC, 300VDC
	expand all
Size-Length	77 mm
Size-Width	45 mm
Operating Temperature	-5℃ ~ 60℃
RoHS	RoHS Compliant

Product Description

The LC1D12U7 is a TeSys D 3-pole Contactor with 3NO power pole and 1NO-1NC auxiliary contacts. TeSys D contactor is designed for perfect integration in control systems. It can be used to create motor starters for any type of application.
AC-1 and AC-3 utilization category
Rated operational voltage of 690VAC at 25Hz to 400Hz and 300VDC for power circuit
Rated operational current of 25A at
4kW at 415VAC to 440VAC, 50Hz/60Hz Motor power
240VAC at 50Hz/60Hz Control circuit voltage
UL94V-1 Flammability rating
-5 to 60°C Ambient operating temperature range
IP2x front face conforming to IEC 60529 standard protection rating
1.56W (AC-1) and 0.36W (AC-3) Power dissipation per pole
Rated breaking capacity of 250A at 440V for power circuit conforming to IEC 60947 standard
