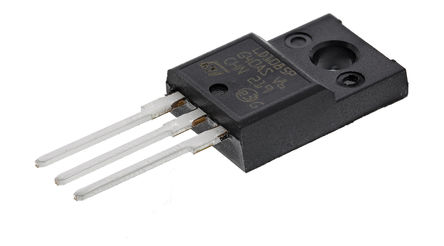

LD1085P ,Voltage Regulator - ST Microelectronics

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

120 points

Part No

LD1085P
Manufacturer

ST Microelectronics
ChipWorker Part#

CW2894012
Category

Voltage Regulator
Package

TO-220-3
Description

STMICROELECTRONICS LD1085P LDO Voltage Regulator, Adjustable, 4.25V to 30V in, 1.3V drop, 1.25V to 4.25V/3A out, TO-220-3
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 2.6

Buy LD1085P

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

LD1085P Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

LD1085P Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	LD1085P
Manufacturer	ST Microelectronics
ChipWorker Part#	CW2894012
Category	Voltage Regulator
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Number of Outputs	1 Output
Input Voltage (DC)	30.0V (max)
Output Voltage	1.25V ~ 28V
Output Current	3 A
Number of Positions	3 Position
Quiescent Current	5 mA
voltage rating	1.3 V
Input Voltage (Max)	30 V
Input Voltage (Min)	4.25 V
Output Voltage (Max)	4.25 V
Output Voltage (Min)	1.25 V
Output Current (Max)	3 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	1 %
Supply Voltage (Min)	2.85 V
Input Voltage	≤30 V
	expand all
Size-Length	10.4 mm
Size-Width	4.6 mm
Size-Height	9.3 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

The LD1085P is an adjustable and fixed low drop Positive Voltage Regulator able to provide up to 3A of output current. Dropout is guaranteed at a maximum of 1.2V at the maximum output current, decreasing at lower loads. This is pin-to-pin compatible with the older 3-terminal adjustable regulator, but offers better performance in terms of drop and output tolerance. Unlike PNP regulator, where a part of the output current is wasted as quiescent current, the quiescent current flows into the load and thus increases efficiency. Only a 10µF minimum capacitor is need for stability.
Output tolerance of ±1% at 25°C and ±2% in full temperature range
Internal power and thermal limit
