LD1117D33CTR - ST Microelectronics

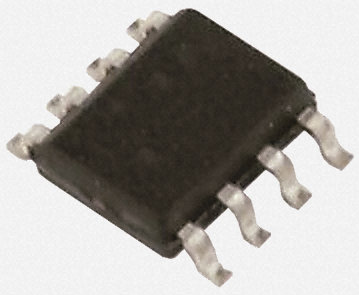

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

LD1117D33CTR
Manufacturer

ST Microelectronics
ChipWorker Part#

CW5474300
Category

Voltage Regulator
Package

SOIC-8
Description

Voltage regulator; LDO, linear, fixed; 3.3V; 0.95A; SO8; SMD; ±2%
Documentation

Datasheet

LD1117D33CTR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

LD1117D33CTR Specifications

Attribute	Attribute Value

Part Number	LD1117D33CTR
Manufacturer	ST Microelectronics
ChipWorker Part#	CW5474300
Category	Voltage Regulator
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Operating Voltage	0V ~ 15V
Number of Outputs	1 Output
Input Voltage (DC)	10.0V (max)
Output Voltage	3.3 V
Output Current	800 mA
Number of Positions	8 Position
Power Dissipation	12 W
Quiescent Current	5 mA
voltage rating	1.1V @800mA
Input Voltage (Max)	15 V
Output Current (Max)	1.3 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	12000 mW
Accuracy	±1 %
Input Voltage	≤15 V
	expand all
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.65 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

Linear Voltage Regulator IC 1 Output 800mA 8-SO
