LD39020DTPU18R - ST Microelectronics

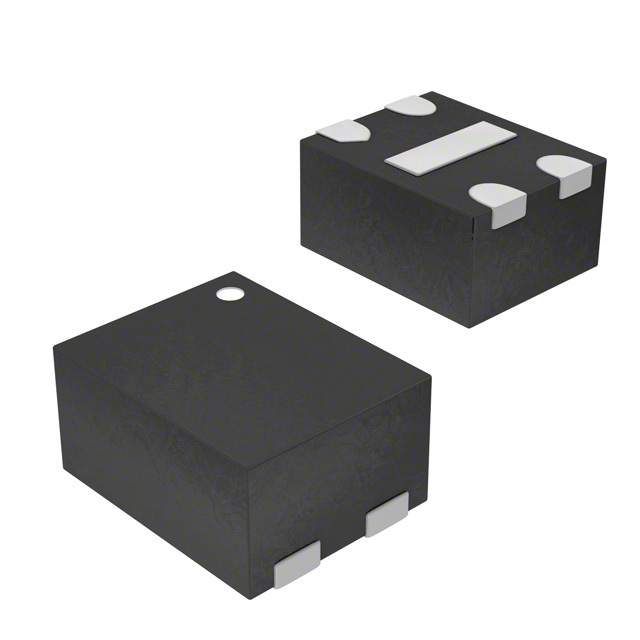

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

LD39020DTPU18R
Manufacturer

ST Microelectronics
ChipWorker Part#

CW54260393
Category

Voltage Regulator
Package

DFN-4
Description

LDO Regulator Pos 1.8V 0.2A 4Pin DFN EP T/R
Documentation

Datasheet

LD39020DTPU18R Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

LD39020DTPU18R Specifications

Attribute	Attribute Value

Part Number	LD39020DTPU18R
Manufacturer	ST Microelectronics
ChipWorker Part#	CW54260393
Category	Voltage Regulator
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	DFN-4
Number of Outputs	1 Output
Output Voltage	1.8 V
Output Current	200 mA
Supply Current	40 µA
voltage rating	100 mV
Input Voltage (Max)	5.5 V
Input Voltage (Min)	1.5 V
Output Voltage (Min)	1.8 V
Output Current (Max)	0.2 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±2 %
Input Voltage	5.5 V
	expand all
Operating Temperature	-40℃ ~ 125℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

* Input voltage from 1.5 to 5.5 V * Ultra low dropout voltage (200 mV typ. at 200 mA load) * Very low quiescent current (20 µA typ at no load, 0.03 µA typ in off mode) * Output voltage tolerance: ±0.5 % (A version) or ± 2.0 % @ 25 °C (standard version) * 200 mA guaranteed output current * High PSRR (80 dB@1 kHz, 50 db@100 kHz) * Wide range of output voltages available on request: from 0.8 V up to 5.0 V in 50 mV step * Logic-controlled electronic shutdown * Internal soft-start * Optional output voltage discharge feature * Compatible with ceramic capacitor COUT = 0.47 µF * Internal constant current and thermal protections * Available in DFN 1x1-4L and SOT23-5L * Operating temperature range: -40 °C to 125 °C
