LM2902VDG - ON Semiconductor

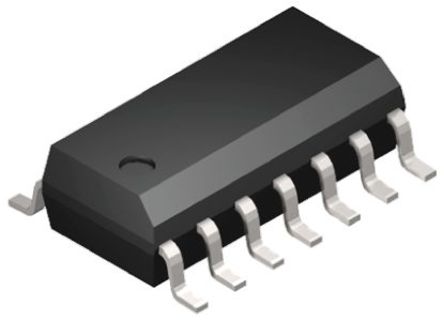

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

LM2902VDG
Manufacturer

ON Semiconductor
ChipWorker Part#

CW29533519
Category

Amplifier, Buffer IC
Package

SOIC-14
Description

OP Amp Quad GP ±16V/32V 14Pin SOIC N Rail
Documentation

Datasheet

LM2902VDG Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

LM2902VDG Specifications

Attribute	Attribute Value

Part Number	LM2902VDG
Manufacturer	ON Semiconductor
ChipWorker Part#	CW29533519
Category	Amplifier, Buffer IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	SOIC-14
Halogen Free Status	Halogen Free
Output Current	40mA @5V
Supply Current	1.4 mA
Number of Circuits	4 Circuit
Common Mode Rejection Ratio	50 dB
Gain Bandwidth Product	1 MHz
Input Offset Voltage	2 mV
Input Bias Current	90 nA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	1 MHz
Minimum CMRR Range	50 dB
	expand all
Size-Length	8.75 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

**LM324, LM224, LM2902, NCV2902, Single Supply, Quad Operational Amplifiers, ON Semiconductor**
The ON Semiconductor LM324/LM224/LM2902/NCV2902 quad operational amplifiers with true differential inputs can operate at supply voltages between 3 V and 32 V. The common mode input range includes the negative supply eliminating the need for external biasing components in many applications. The output voltage range also includes the negative power supply voltage.
