LM317LCLPR - TI

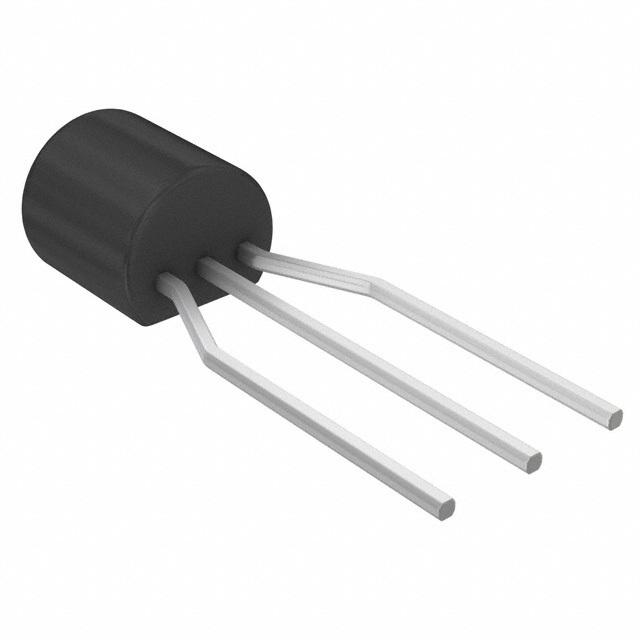

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

LM317LCLPR
Manufacturer

TI
ChipWorker Part#

CW17963533
Category

Voltage Regulator
Package

TO-226-3
Description

Standard Voltage Regulator 3/8Pin 100mA Adjustable Positive Regulator LDO Regulator Pos 1.2V to 32V 0.1A 3Pin TO-92 T/R
Documentation

Datasheet

LM317LCLPR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

LM317LCLPR Specifications

Attribute	Attribute Value

Part Number	LM317LCLPR
Manufacturer	TI
ChipWorker Part#	CW17963533
Category	Voltage Regulator
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-226-3
Supply Voltage (DC)	5.00V (min)
Number of Outputs	1 Output
Input Voltage (DC)	38.0V (max)
Output Voltage	1.2V ~ 32V
Output Current	100 mA
Number of Positions	3 Position
Quiescent Current	1.50 mA
Output Capacitor Type	Capacitor Free
voltage rating	2.00 V
Number of Regulated Outputs	1 Output
Input Voltage (Max)	38 V
Input Voltage (Min)	5 V
Output Voltage (Max)	32 V
Output Voltage (Min)	1.2 V
Output Current (Max)	0.1 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	0 ℃
Input Voltage	3.7V ~ 38V
	expand all
Operating Temperature	0℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15

Product Description

Use this LDO LM317LCLPR linear regulator from Texas Instruments to vary your voltage levels to your desired level. This voltage regulation device"s single output can produce a current up to 0.1 A. The best way to provide power to your application is by using this, which needs a voltage of at least 3.7 V and no higher than 38 V. With an adjustable output that has a voltage of 1.2 to 32 V, this is power management at its best. To produce a constant current at your output, supply your circuit with a load regulation of 0.5%(Typ) and line regulation of 0.02%V. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. Its polarity is positive. This voltage regulation device has a minimum operating temperature of 0 °C and a maximum of 125 °C. The maximum dropout voltage is 2.5@100mA V.
