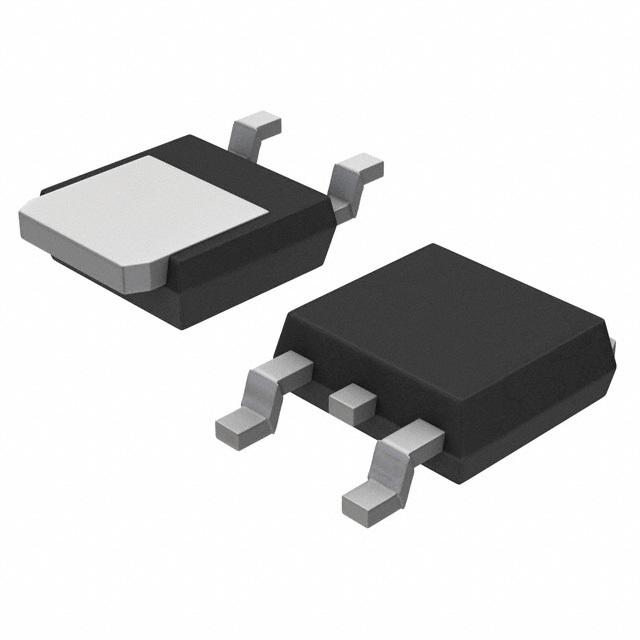

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

LM317MBDTRKG
Manufacturer

ON Semiconductor
ChipWorker Part#

CW1295644
Category

Voltage Regulator
Package

TO-252-3
Description

Linear Voltage Regulator, Positive, Adjustable Output, 500mA Vout: 4%; TJ = -40℃ to 125℃, DPAK (SINGLE GAUGE) TO-252, 2500-REEL
Documentation

Datasheet

LM317MBDTRKG Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

LM317MBDTRKG Specifications

Attribute	Attribute Value

Part Number	LM317MBDTRKG
Manufacturer	ON Semiconductor
ChipWorker Part#	CW1295644
Category	Voltage Regulator
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-252-3
Supply Voltage (DC)	40.0V (max)
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Output Voltage	1.2V ~ 37V
Output Current	500 mA
Number of Positions	3 Position
Polarity	P-Channel
Input Voltage (Max)	40 V
Input Voltage (Min)	3 V
Output Voltage (Max)	37 V
Output Voltage (Min)	1.2 V
Output Current (Max)	0.25 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±4 %
Input Voltage	≤40 V
	expand all
Size-Width	6.22 mm
Size-Height	2.38 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
HK STC License	NLR

Product Description

500 mA Adjustable Output, Positive Voltage Regulator
The LM317M is an adjustable three−terminal positive voltage regulator capable of supplying in excess of 500 mA over an output voltage range of 1.2 V to 37 V. This voltage regulator is exceptionally easy to use and requires only two external resistors to set the output voltage. Further, it employs internal current limiting, thermal shutdown and safe area compensation, making it essentially blow−out proof.
Features
•Output Current in Excess of 500 mA
•Output Adjustable between 1.2 V and 37 V
•Internal Thermal Overload Protection
•Internal Short Circuit Current Limiting
•Output Transistor Safe−Area Compensation
•Floating Operation for High Voltage Applications
•Eliminates Stocking Many Fixed Voltages
•Pb−Free Packages are Available
•NCV Prefix for Automotive and Other Applications Requiring Site and Control Changes
