LM337KCSE3 - TI

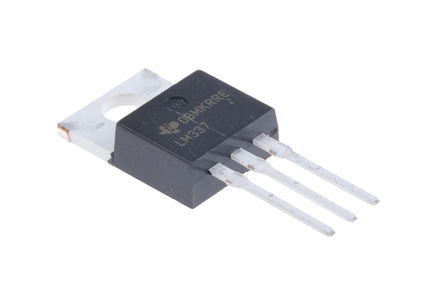

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

LM337KCSE3
Manufacturer

TI
ChipWorker Part#

CW7854793
Category

Voltage Regulator
Package

TO-220-3
Description

TEXAS INSTRUMENTS LM337KCSE3 Linear Voltage Regulator, Adjustable, -40V to -3V input, -1.2V to -37V/1.5A out, TO-220-3
Documentation

Datasheet

LM337KCSE3 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

LM337KCSE3 Specifications

Attribute	Attribute Value

Part Number	LM337KCSE3
Manufacturer	TI
ChipWorker Part#	CW7854793
Category	Voltage Regulator
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Number of Outputs	1 Output
Input Voltage (DC)	-40.0 V (max)
Output Voltage	-37.0 V (max), -1.20 V (min)
Output Current	1.5 A
Number of Positions	3 Position
Quiescent Current	1.50 mA
voltage rating	2.00 V
Number of Regulated Outputs	1 Output
Output Current (Max)	1.5 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	0 ℃
	expand all
Size-Length	10.16 mm
Size-Width	4.58 mm
Size-Height	8.7 mm
Operating Temperature	0℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15

Product Description

The LM337KCSE3 is a 3-terminal adjustable negative Voltage Regulator capable of supplying in excess of 1.5A over an output voltage range of -1.2 to -37V. This regulator requires only two external resistors to set the output voltage and one output capacitor for frequency compensation.
0.01% Input regulation
0.3% Output regulation
Peak output current constant over-temperature range of regulator
77dB Typically ripple rejection
Non-ceramic output capacitor
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
