LM339N ,Comparator, Analog Comparator IC - TI

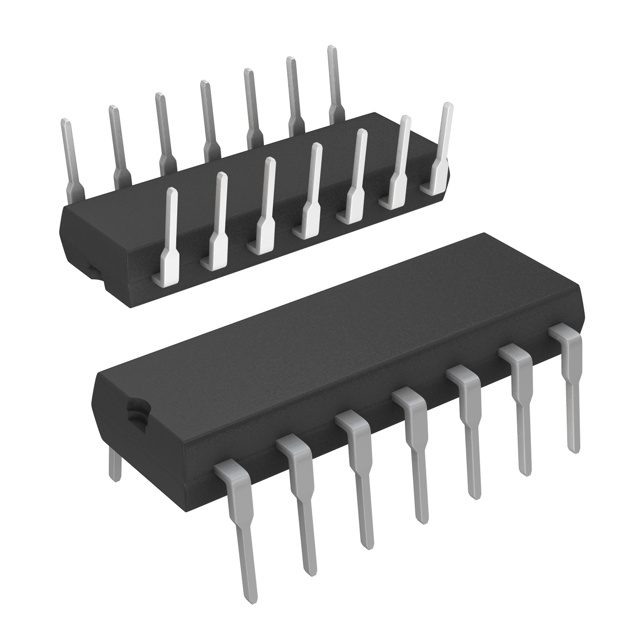

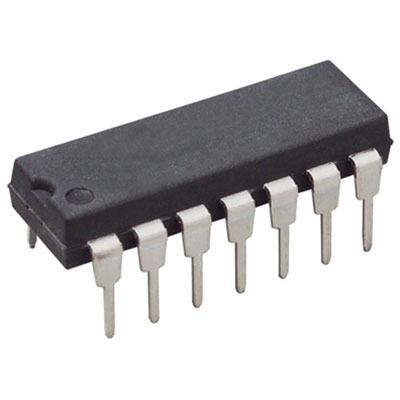

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

302 points

Part No

LM339N
Manufacturer

TI
ChipWorker Part#

CW32614
Category

Comparator, Analog Comparator IC
Package

DIP-14
Description

Analogue Comparator, Quad, Precision, 4, 1.3µs, 2V to 36V, ± 1V to ± 18V, DIP, 14Pins
Documentation

Datasheet
Ships from

Moscow
Наличие

652 pcs In Stock
Estimated Price

$ 0.11

Buy LM339N

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

LM339N Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

LM339N Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	LM339N
Manufacturer	TI
ChipWorker Part#	CW32614
Category	Comparator, Analog Comparator IC
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	14 Pin
Case/Package	DIP-14
Supply Voltage (DC)	2.00V (min)
Output Current	20 mA
Supply Current	2 mA
Number of Circuits	4 Circuit
Number of Channels	4 Channel
Number of Positions	14 Position
Quiescent Current	800 µA
Input Offset Voltage	5 mV
Input Bias Current	250 nA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	2V ~ 36V
Supply Voltage (Max)	36 V
Supply Voltage (Min)	2 V
	expand all
Size-Length	19.3 mm
Size-Width	6.35 mm
Size-Height	4.57 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17

Similar & Replacement Parts

Similar products

LM339N+

National Semiconductor

LM339N

National Semiconductor

Product Description

The LM339N is a quad differential comparator in 14 pin DIP package. This device consists of four independent voltage comparators that are designed to operate from single power supply over wide range of voltages. LM339N can operate with dual power supply as long as difference between two supplies is 2V to 36V and VCC is at least 1.5V more positive than input common mode voltage. Current drain is independent of supply voltage and outputs can be connected to other open collector outputs to achieve wired AND relationships.
Single supply range from 2V to 36V and dual supplies range from ±1V to ±18V
Low drain supply current is typically 0.8mA (independent of supply voltage)
Response time of 0.3µs (TTL level input step)
Low input bias current is -25nA
Low input offset voltage is 2mV
Common mode input voltage range includes ground
Differential input voltage range equal to maximum rated supply voltage of ±36V
Low output saturation voltage
Output compatible with TTL, MOS and CMOS
Operating temperature range from 0°C to 70°C
This device has limited built-in ESD protection. The leads should be shorted together or device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
