LM46000PWPT - TI

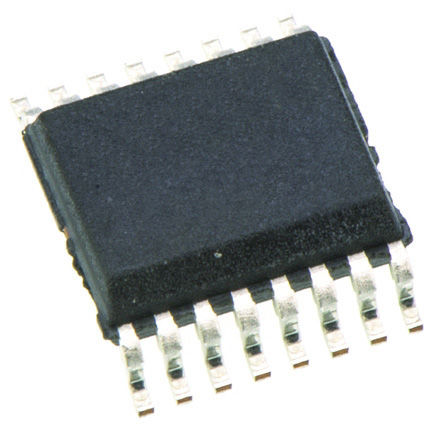

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

LM46000PWPT
Manufacturer

TI
ChipWorker Part#

CW40774269
Category

DC to DC Converter
Package

HTSSOP-16
Description

Conv DC-DC 3.5V to 60V Step Down Single-Out 1V to 28V 0.5A Automotive 16Pin HTSSOP EP T/R
Documentation

Datasheet

LM46000PWPT Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

LM46000PWPT Specifications

Attribute	Attribute Value

Part Number	LM46000PWPT
Manufacturer	TI
ChipWorker Part#	CW40774269
Category	DC to DC Converter
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	HTSSOP-16
Number of Outputs	1 Output
Output Voltage	1V ~ 28V
Output Current	500 mA
Number of Positions	16 Position
Quiescent Current	24.0 µA
Number of Regulated Outputs	1 Output
Switching Frequency	2.2 MHz
Topology	Buck
Input Voltage (Max)	60 V
Input Voltage (Min)	3.5 V
Output Voltage (Max)	28 V
Output Voltage (Min)	1 V
Output Current (Max)	500 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Min)	3.5 V
Input Voltage	60 V
	expand all
Size-Length	5.1 mm
Size-Width	4.5 mm
Size-Height	1.05 mm
Operating Temperature	-40℃ ~ 125℃ (TJ)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15

Product Description

The LM46000PWPT is a SIMPLE SWITCHER® easy-to-use synchronous step-down DC-to-DC Converter capable of driving up to 500mA of load current from an input voltage range of 3.5 to 60V. The LM46000 provides exceptional efficiency, output accuracy and dropout voltage in a very small solution size. Peak current mode control is employed to achieve simple control loop compensation and cycle-by-cycle current limiting. Optional features such as programmable switching frequency, synchronization, power-good flag, precision enable, internal soft-start, extendable soft-start and tracking provide a flexible and easy to use platform for a wide range of applications. Discontinuous conduction and automatic frequency modulation at light loads improve light load efficiency. The family requires few external components and pin arrangement allows simple, optimum PCB layout. Protection features include thermal shutdown, VCC undervoltage lockout and cycle-by-cycle current limit.
High efficiency at light load (DCM and PFM)
Integrated synchronous rectification
Frequency synchronization to external clock
Internal compensation
Stable with almost any combination of ceramic, polymer, tantalum and aluminium capacitors
Power-good flag
Soft-start into pre-biased load
Extendable soft-start time by external capacitor
Output voltage tracking capability
Precision enable to program system UVLO
Output short-circuit protection with hiccup mode
24µA Quiescent current in regulation
4.1ms Internal soft-start
Green product and no Sb/Br
