LM536003QDSXTQ1 - TI

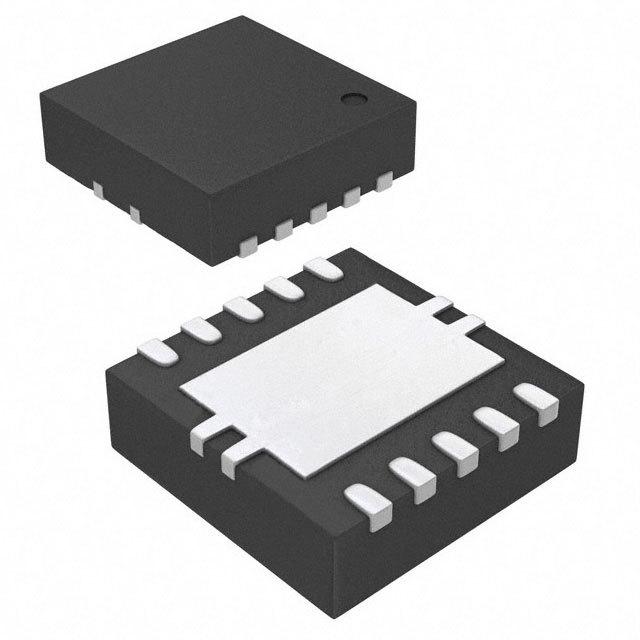

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

LM536003QDSXTQ1
Manufacturer

TI
ChipWorker Part#

CW77917293
Category

Voltage Regulator
Package

WFDFN-10
Description

Conv DC-DC 3.55V to 36V Synchronous Step Down Single-Out 3.3V to 6V 0.65A 10Pin WSON EP T/R
Documentation

Datasheet

LM536003QDSXTQ1 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

LM536003QDSXTQ1 Specifications

Attribute	Attribute Value

Part Number	LM536003QDSXTQ1
Manufacturer	TI
ChipWorker Part#	CW77917293
Category	Voltage Regulator
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	WFDFN-10
Number of Outputs	1 Output
Output Voltage	3.3 V
Output Current	650 mA
Number of Positions	10 Position
Quiescent Current	23.0 µA
Number of Regulated Outputs	1 Output
Switching Frequency	1 MHz
Topology	Buck
Switching Current	1.65 A
Input Voltage (Max)	36 V
Input Voltage (Min)	3.55 V
Output Voltage (Min)	3.3 V
Output Current (Max)	0.65 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	36 V
	expand all
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15

Product Description

The LM536003QDSXTQ1 is a 0.65A, 36V synchronous, 2.1MHz, step down DC to DC converter in 10 pin WSON package. The LM53600-Q1 synchronous buck regulator devices are optimized for automotive applications providing an output voltage of 3.3V. Load current up to 650mA is supported by the LM53600-Q1. Innovative architecture allows the device to regulate a 3.3V output from an input voltage of only 3.8V. The input voltage range up to 36V with transient tolerance of up to 42V eases input surge protection design. An open drain reset output with filtering and delayed release provides a true indication of system status and negates the requirement for an additional supervisory component, saving cost and board space. A seamless transition between PWM and PFM modes ensures high efficiency and superior transient response at all loads. Typical applications include automotive camera, automotive driver assistance systems and automotive body applications.
Wide operating input voltage range from 3.55V to 36V
Fixed switching frequency of 2.1MHz
Low quiescent current of 23µA
Shutdown current of 1.8µA
RESET (complementary) output with filter and delay release
External frequency synchronization
Internal compensation, soft start, current limit and UVLO
Pin selectable forced PWM mode
Automotive grade AEC-Q100 qualified
Operating temperature range from -40°C to 150°C
ESD sensitive device, take proper precaution while handling the device.
