LM7301SN1T1G - ON Semiconductor

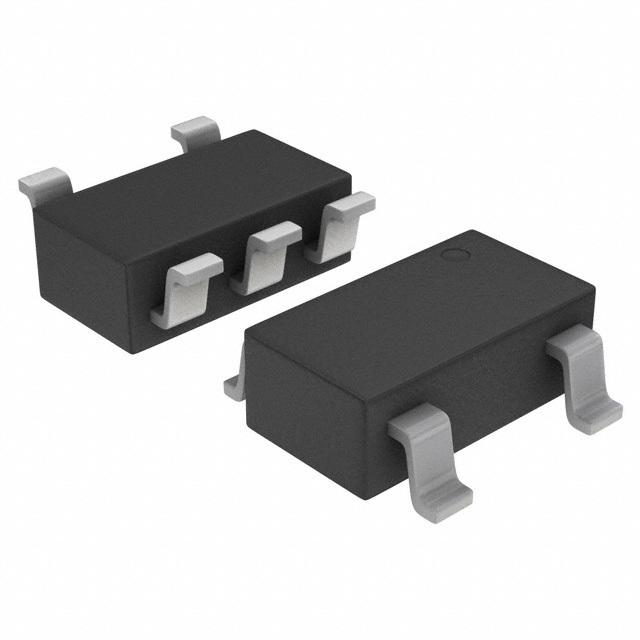

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

LM7301SN1T1G
Manufacturer

ON Semiconductor
ChipWorker Part#

CW88420825
Category

Operational Amplifier, OP Amp IC
Package

SOT-23-5
Description

OP Amp Single GP R-R I/O 32V 5Pin TSOP T/R
Documentation

Datasheet

LM7301SN1T1G Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

LM7301SN1T1G Specifications

Attribute	Attribute Value

Part Number	LM7301SN1T1G
Manufacturer	ON Semiconductor
ChipWorker Part#	CW88420825
Category	Operational Amplifier, OP Amp IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SOT-23-5
Supply Current	600 µA
Number of Circuits	1 Circuit
Common Mode Rejection Ratio	70 dB
Gain Bandwidth Product	4 MHz
Input Offset Voltage	6 mV
Input Bias Current	200 nA
Minimum CMRR Range	70 dB
	expand all
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

The LM7301 series of operational amplifiers provide high performance in a wide range of applications. The benefits include greater than rail-to-rail input range, full rail-to-rail output swing, large capacitive load driving ability and low distortion. With only 0.6 mA supply current, the 4 MHz gain-bandwidth of this device supports new portable applications where higher power devices unacceptably drain battery life.The LM7301 series can be driven by voltages that exceed both power supply rails, thus eliminating concerns over exceeding the common-mode voltage range. The rail-to-rail output swing capability provides the maximum possible dynamic range at the output. This is particularly important when operating on low supply voltages. Operating on supplies of 1.8 V to 32 V, the LM7301 is excellent for a very wide range of applications in low power systems. Placing the amplifier right at the signal source reduces board size and simplifies signal routing. The LM7301 fits easily on low profile PCMCIA cards.
Features
---
|
Tiny 5-pin SOT23 Package Saves Space
Greater than Rail-to-Rail Input CMVR: 0.25 V to 5.25 V @ VS = 5 V
Rail-to-Rail Output Swing: 0.07 V to 4.93 V @ VS = 5 V
Wide Gain-Bandwidth: 4 MHz @ VS = 5 V
Low Supply Current: 0.60 mA @ VS = 5 V
Wide Supply Range: 1.8 V to 32 V @ VS = 5 V
High PSRR: 104 dB @ VS = 5 V
High CMRR: 93 dB @ VS = 5 V
Excellent Gain: 97 dB @ VS = 5 V
Capable of Driving a 1 nF Capacitive Load
These Devices are Pb-Free, Halogen Free/BFR Free and are RoHS Compliant
