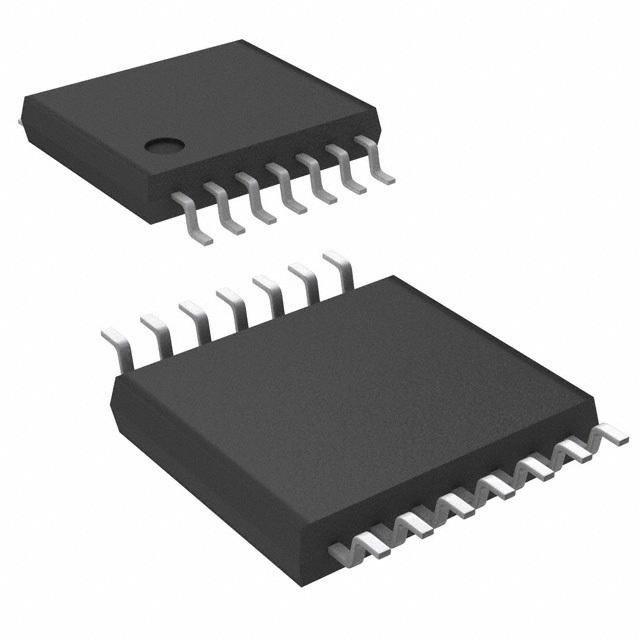

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

LMP7704MT
Manufacturer

TI
ChipWorker Part#

CW43291633
Category

Operational Amplifier, OP Amp IC
Package

TSSOP-14
Description

TEXAS INSTRUMENTS LMP7704MT Operational Amplifier, Quad, 4 Amplifier, 2.5MHz, 1.1V/µs, 2.7V to 12V, TSSOP, 14Pins
Documentation

Datasheet

LMP7704MT Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

LMP7704MT Specifications

Attribute	Attribute Value

Part Number	LMP7704MT
Manufacturer	TI
ChipWorker Part#	CW43291633
Category	Operational Amplifier, OP Amp IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	TSSOP-14
Output Current	40mA @5V
Supply Current	3.2 mA
Number of Circuits	4 Circuit
Number of Channels	4 Channel
Number of Positions	14 Position
Common Mode Rejection Ratio	86 dB
Input Offset Drift	1.00 µV/K
Bandwidth	2.5 MHz
Slew Rate	1.00 V/μs
Gain Bandwidth Product	2.5 MHz
Input Offset Voltage	37 µV
Input Bias Current	0.2 pA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	2.5 MHz
Minimum CMRR Range	86 dB
Supply Voltage	2.7V ~ 12V
	expand all
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15

Product Description

The LMP7704MT is a quad wide supply range precision Operational Amplifier with CMOS input, rail-to-rail input and output. The LMP770x is part of the LMP™ precision amplifier family and is ideal for sensor interface and other instrumentation applications. The specified low-offset voltage of less than ±200µV, along with the specified low input bias current of less than ±1pA. The LMP770x is built using VIP50 technology, which allows the combination of a CMOS input stage and a 12V common-mode and supply voltage range. This makes the LMP770x ideal for applications where conventional CMOS parts cannot operate under the desired voltage conditions. The LMP770x each have a rail-to-rail input stage that significantly reduces the CMRR glitch commonly associated with rail-to-rail input amplifier. This is achieved by trimming both sides of the complimentary input stage, thereby reducing the difference between the NMOS and PMOS offsets.
Unless otherwise noted, typical values at VS=5V
±220µV Maximum input offset voltage
±200fA Input bias current
9nV/√Hz Input voltage noise
130dB CMRR
130dB Open-loop gain
2.9mA Supply current
