LNK304GN - Power Integrations

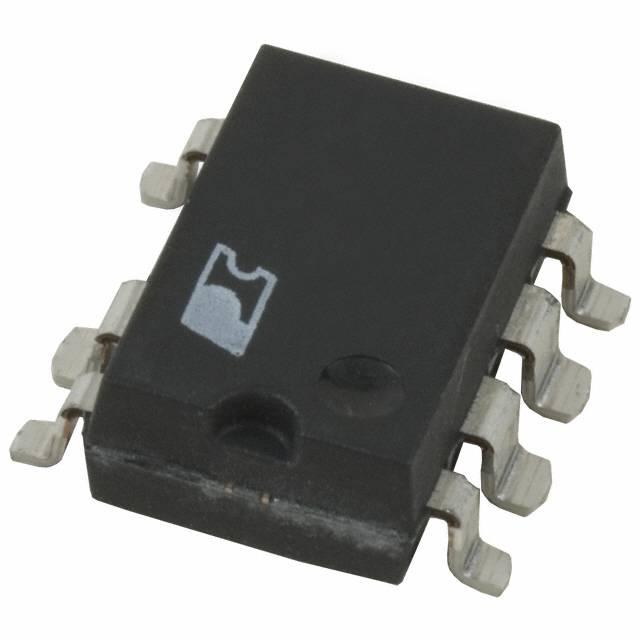

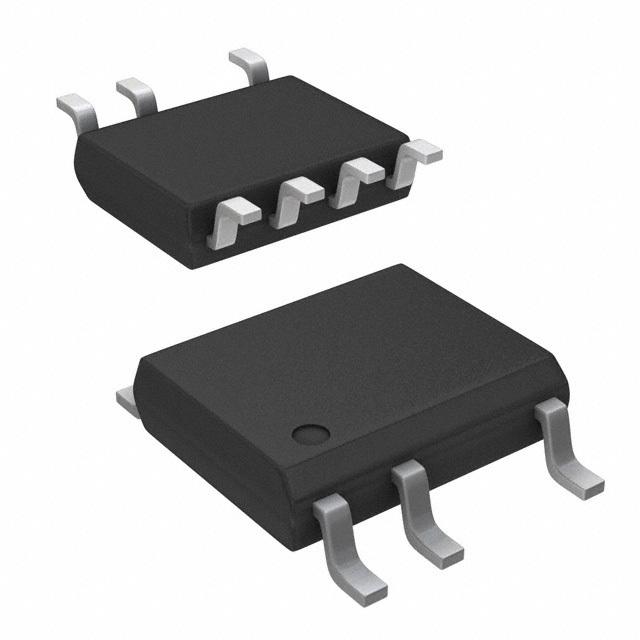

The pictures are for reference only, and the specific specifications can be found in the product manual.
-
Part NoLNK304GN
-
ManufacturerPower Integrations
-
ChipWorker Part#CW1527363
-
CategoryAC to DC Converter, AC/DC Power Module
-
PackageSMD-8
-
DescriptionPOWER INTEGRATIONS LNK304GN AC-DC Off-Line Switcher IC, Integrated MOSFET, 85VAC - 265VAC in, 66kHz, 120mA output, SO-8
-
DocumentationDatasheet
Payment Methods and Delivery
{{ estimate }}
LNK304GN Global Supplier
| {{ supplierTable.supplier }} | {{ supplierTable.part }} | {{ supplierTable.availability }} | MOQ | {{ supplierTable.delivery_date }} | {{ supplierTable.buy }} | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
{{ skuList.vendorName }}
|
{{ noList.partNo }}
{{ strFormat(skuList.part_no) }}
{{ skuList.part_no }}
{{ skuList.mfrEn }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
{{ skuList.moq }} - |
{{ceilNumber(skuList.minDeliveryDay,skuList.maxDeliveryDay)}} {{delivery_date}}
6 {{delivery_date}}
|
{{ formatQuantity(priceList.quantity) }}
{{ ToEffectiveNum(priceList.price) }}
{{viewMore}}
|
|
{{ skuList.vendorName }}
|
{{ skuList.part_no }}
{{ skuList.mfrEn }}
{{ noList.partNo }}
{{ noList.mfr }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
- |
{{outStock}}
|
{{ formatQuantity(priceList.quantity) }}
{{ ToEffectiveNum(priceList.price) }}
{{viewMore}}
|
- | ${{UpToFourDecimals(priceCalc,skuList.rate)}} |
|
|
{{viewMore}}
|
|||||||||||||||
|
{{viewMore}}
|
|||||||||||||||
|
DigiKey
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,1)}} |
|
||||||||
|
Arrow
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,0.96)}} |
|
||||||||
|
Mouser
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,0.92)}} |
|
||||||||
|
{{submitRFQ}}
|
|||||||||||||||
{{ apiText }}{{ apiTime }}(UTC+8)
LNK304GN Specifications
| Attribute | Attribute Value |
|---|---|
| Part Number | LNK304GN |
| Manufacturer | Power Integrations |
| ChipWorker Part# | CW1527363 |
| Category | AC to DC Converter, AC/DC Power Module |
| Documentation | Datasheet |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | SMD-8 |
| Frequency | 66.0 kHz |
| Supply Voltage (DC) | 374V (max) |
| Power Rating | 80 mW |
| Number of Outputs | 1 Output |
| Output Voltage | 12 V |
| Output Current | 170 mA |
| Breakdown Voltage | 700 V |
| Supply Current | 200 µA |
| Number of Positions | 8 Position |
| Switching Frequency | 66 kHz |
| Duty Cycle | 69 % |
| Input Voltage (Max) | 265 VAC |
| Input Voltage (Min) | 85 VAC |
| Input Voltage (AC Max) | 265 v |
| Input Voltage (AC Min) | 85 v |
| Maximum Duty Cycle | 72 % |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| expand all | |
| Size-Length | 9.83 mm |
| Size-Width | 6.6 mm |
| Size-Height | 3.68 mm |
| Operating Temperature | -40℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
Product Description
- This device is specifically designed to replace linear and capacitor-fed (cap dropper) non-isolated power supplies in the under 360 mA output current range. It integrates a 700 V power MOSFET, oscillator, simple On/Off control scheme, a high voltage switched current source, frequency jittering, cycle-by-cycle current limit and thermal shutdown circuitry.
- Low cost and component count buck converter
- Fully integrated auto-restart for short-circuit and open loop fault protection
- Tight tolerances and negligible temperature variation
- Supports buck, buck-boost and flyback topologies
- Excellent line and load regulation even with typical configuration
