LPC2106FBD48 - NXP

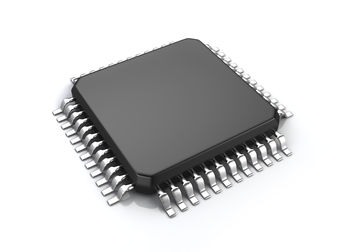

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

LPC2106FBD48
Manufacturer

NXP
ChipWorker Part#

CW17588996
Category

Microcontroller, MCU IC
Package

LQFP-48
Description

IC 32Bit, FLASH, 60MHz, RISC MICROCONTROLLER, PQFP48, 7 X 7MM, 1.4MM HEIGHT, PLASTIC, MS-026, SOT313-2, LQFP-48, Microcontroller
Documentation

Datasheet

LPC2106FBD48 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

LPC2106FBD48 Specifications

Attribute	Attribute Value

Part Number	LPC2106FBD48
Manufacturer	NXP
ChipWorker Part#	CW17588996
Category	Microcontroller, MCU IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	48 Pin
Case/Package	LQFP-48
Operating Voltage	1.65V ~ 3.6V
Clock Speed	60 MHz
RAM Memory Size	64 KB
Number of Bits	32 Bit
Power Dissipation	1500 mW
FLASH Memory Size	128 KB
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1500 mW
	expand all
Size-Length	7 mm
Size-Width	7 mm
Size-Height	1.4 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Unknown
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
