LPS25H ,Pressure Sensor - ST Microelectronics

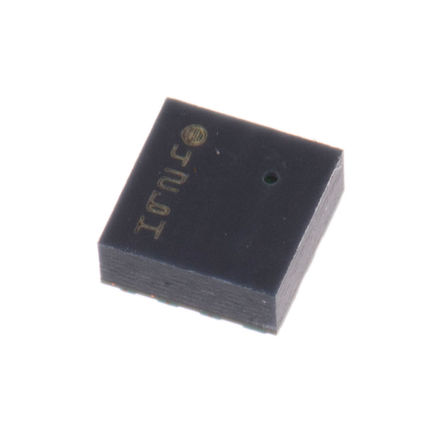

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

53 points

Part No

LPS25H
Manufacturer

ST Microelectronics
ChipWorker Part#

CW80584631
Category

Pressure Sensor
Package

HCLGA-10L
Description

Pressure Sensor, Absolute, 26 kPa, 126 kPa, 1.7V, 3.6V
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 3.15

Buy LPS25H

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

LPS25H Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

LPS25H Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	LPS25H
Manufacturer	ST Microelectronics
ChipWorker Part#	CW80584631
Category	Pressure Sensor
Documentation	Datasheet
Number of Pins	10 Pin
Case/Package	HCLGA-10L
Supply Voltage (DC)	1.70V (min)
Number of Positions	10 Position
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-30 ℃
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	1.7 V
	expand all
Operating Temperature	-30℃ ~ 105℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Pololu Robotics & Electronics

Product Description

The LPS25H is an ultra compact absolute piezoresistive Pressure Sensor, includes a monolithic sensing element and an IC interface able to take the information from the sensing element and to provide a digital signal to the external world. The sensing element consists of a suspended membrane realized inside a single mono-silicon substrate. It is capable to detect pressure and is manufactured using a dedicated process developed by ST. The membrane is very small compared to the traditionally built silicon micro-machined membranes. Membrane breakage is prevented by an intrinsic mechanical stopper. The IC interface is manufactured using a standard CMOS process that allows a high level of integration to design a dedicated circuit which is trimmed to better match the sensing element characteristics. The package is holed to allow external pressure to reach the sensing element.
260 to 1260mbar Absolute Pressure Range
1Pa RMS High-resolution Mode
4µA Low Resolution Mode
25µA High Resolution Mode
20x Full Scale High Overpressure Capability
Embedded Temperature Compensation
Embedded 24-bit ADC
Selectable ODR from 1 to 25Hz
SPI and I²C Interfaces
Embedded FIFO
10,000g High Shock Survivability
