LPT45 - Artesyn Embedded Technologies

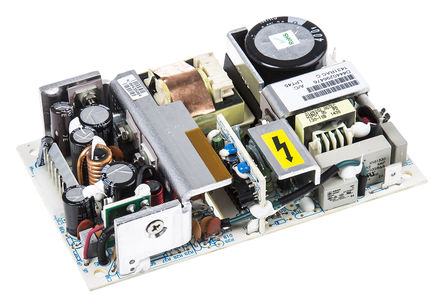

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

LPT45
Manufacturer

Artesyn Embedded Technologies
ChipWorker Part#

CW22363600
Category

AC to DC Converter, AC/DC Converter
Description

AC-DC Power Supply Triple-OUT 5V/15V/-15V 5A/2.5A/0.7A 55W 10Pin
Documentation

Datasheet

LPT45 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	-	6 - 8 {{delivery_date}}

LPT45 Specifications

Attribute	Attribute Value

Part Number	LPT45
Manufacturer	Artesyn Embedded Technologies
ChipWorker Part#	CW22363600
Category	AC to DC Converter, AC/DC Converter
Documentation	Datasheet
Mounting Style	Chassis
Number of Pins	10 Pin
Power Rating	40 W
Number of Outputs	3 Output
Output Voltage	5.00 V, 15.0 V, -15.0 V
Output Current	5.00A, 4.00A
Output Power	55 W
Input Voltage (DC Max)	300 V
Input Voltage (DC Min)	120 V
Input Voltage (AC Max)	264 v
Input Voltage (AC Min)	85 v
Input Current (Min)	1 Arms
Input Power (Max)	40 W
Input Power (Max)	40 W
Operating Temperature (Max)	50 ℃
Operating Temperature (Min)	0 ℃
Input Voltage	85VAC ~ 264VAC
	expand all
Size-Length	127 mm
Size-Width	76.2 mm
Size-Height	1.14 in
Weight	230 g
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC

Product Description

The LPT40 series from Artesyn Embedded Technologies are open frame, triple output AC to DC converters. These AC to DC converters feature remote sense on mains output and built-in EMI filter. The LPT40 series are approved by UL, cUL, NEMKO, CB, CE safety standards.
Total output power range from 44W to 55W
Input voltage range from 85VAC to 264VAC and 120VDC to 300VDC
3inch x 5inch footprint and less than 1U height
Overvoltage and overload protection
Adjustable mains output
110KHz switching frequency
Efficiency is 70% typical at full load (60% for LPT41)
Operating temperature range 0° to 50°C
Low output ripple
Designed to meet IEC 801-2, -3, -4, -5, -6, level 3 standards
LPX40 enclosure kit is available for LPT40 series AC to DC converter, sold separately.
