LPV7215MG - TI

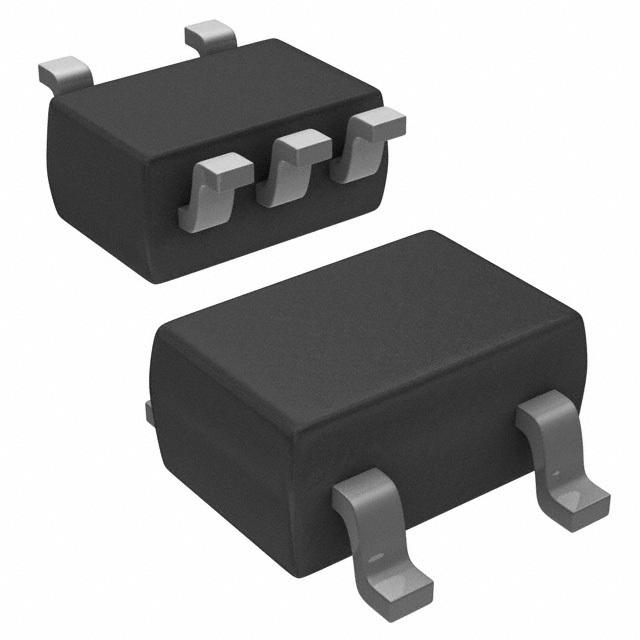

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

LPV7215MG
Manufacturer

TI
ChipWorker Part#

CW111245903
Category

Comparator, Analog Comparator IC
Package

SC-70-5
Description

TEXAS INSTRUMENTS LPV7215MG Analogue Comparator, Rail to Rail, General Purpose, 1, 45µs, 1.8V to 5.5V, SC-70, 5Pins
Documentation

Datasheet

LPV7215MG Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

LPV7215MG Specifications

Attribute	Attribute Value

Part Number	LPV7215MG
Manufacturer	TI
ChipWorker Part#	CW111245903
Category	Comparator, Analog Comparator IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SC-70-5
Output Current	19mA @5V
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	5 Position
Common Mode Rejection Ratio	98 dB
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	1.8V ~ 5.5V
	expand all
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15

Product Description

The LPV7215MG is an ultra low-power Comparator with CMOS input RRIO push-pull output. The comparator with a typical power supply current of 580nA. It has the best-in-class power supply current versus propagation delay performance available among TIs low-power comparators. The propagation delay is as low as 4.5 microseconds with 100mV overdrive at 1.8V supply. It is designed to operate over a wide range of supply voltages, from 1.8 to 5.5V with ensured operation at 1.8/2.7/5V.
Push-pull output current drive at 5V 19mA
Rail-to-rail input
Green product and no Sb/Br
