LQH3NPN100NG0L - muRata

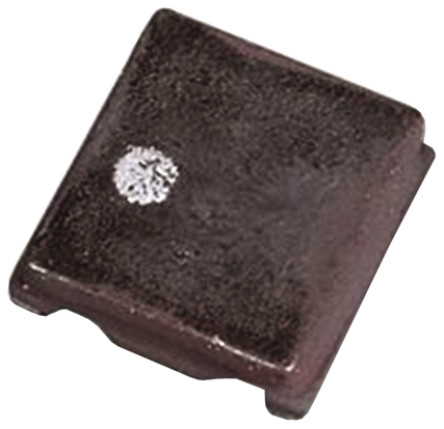

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

LQH3NPN100NG0L
Manufacturer

muRata
ChipWorker Part#

CW67470932
Category

Inductor
Package

1212
Description

10uH ±30%
Documentation

Datasheet

LQH3NPN100NG0L Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

LQH3NPN100NG0L Specifications

Attribute	Attribute Value

Part Number	LQH3NPN100NG0L
Manufacturer	muRata
ChipWorker Part#	CW67470932
Category	Inductor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	1212
Current Rating	630 mA
Capacitance Tolerance	±30 %
Inductance	10 µH
Self Resonant Frequency	45 MHz
Part Family	LQH
Resonant Frequency	45.0 MHz
Inductance Tolerance	±30 %
Test Frequency	1 MHz
DC Resistance (DCR)	≤684 mΩ
Current Rating (DC)	500 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Resistance (DC Max)	0.57 Ω
	expand all
Size-Length	3 mm
Size-Width	3 mm
Size-Height	0.9 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
Minimum Packing Quantity	1500
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC

Product Description

10µH Shielded Wirewound Inductor 630mA 684mOhm Max 1212 (3030 Metric)
