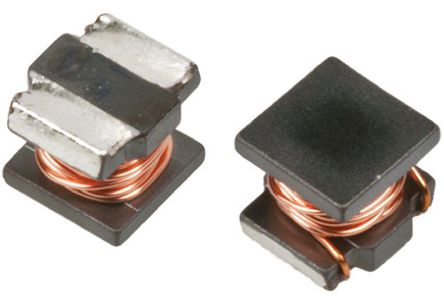

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

LQH55DN1R0M03L
Manufacturer

muRata
ChipWorker Part#

CW19919004
Category

Inductor Surface Mount
Package

2220
Description

2220 1uH ±20%
Documentation

Datasheet

LQH55DN1R0M03L Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

LQH55DN1R0M03L Specifications

Attribute	Attribute Value

Part Number	LQH55DN1R0M03L
Manufacturer	muRata
ChipWorker Part#	CW19919004
Category	Inductor Surface Mount
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	2220
Current Rating	4.00 A
Capacitance Tolerance	±20 %
Inductance	1 µH
Self Resonant Frequency	150 MHz
Part Family	LQH
Resistance	19.0 mΩ
Resonant Frequency	150 MHz
Inductance Tolerance	±20 %
Test Frequency	1 MHz
DC Resistance (DCR)	0.0266 Ω
Operating Temperature (Max)	80 ℃
Operating Temperature (Min)	-40 ℃
Resistance (DC Max)	19 mΩ
	expand all
Size-Length	5.7 mm
Size-Width	5.0 mm
Size-Height	4.7 mm
Weight	0.48 g
Operating Temperature	-40℃ ~ 80℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
Minimum Packing Quantity	350
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2017/07/07

Product Description

LQH55D series are winding type coils for choke by using high performance thick wire wound technology. Features 1. Low direct current resistance, large current capacity and large inductance 2. For DC-DC converters and DC power supply circuits
