LQM2HPN1R5MG0L - muRata

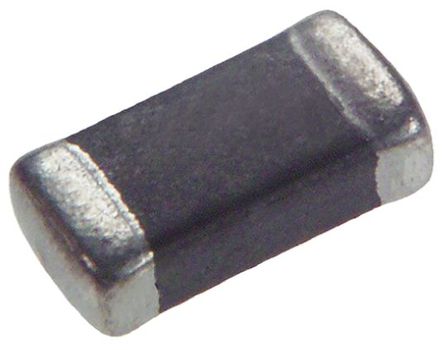

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

LQM2HPN1R5MG0L
Manufacturer

muRata
ChipWorker Part#

CW4876035
Category

Inductor Surface Mount
Package

1008
Description

1008 1.5uH ±20%
Documentation

Datasheet

LQM2HPN1R5MG0L Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

LQM2HPN1R5MG0L Specifications

Attribute	Attribute Value

Part Number	LQM2HPN1R5MG0L
Manufacturer	muRata
ChipWorker Part#	CW4876035
Category	Inductor Surface Mount
Documentation	Datasheet
Mounting Style	Surface Mount
Case/Package	1008
Current Rating	1.5 A
Capacitance Tolerance	±20 %
Inductance	1.5 µH
Self Resonant Frequency	50 MHz
Part Family	LQM
Inductance Tolerance	±20 %
Test Frequency	1 MHz
DC Resistance (DCR)	≤88 mΩ
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Resistance (DC Max)	0.088 Ω
	expand all
Size-Length	2.5 mm
Size-Width	2 mm
Size-Height	0.9 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
Minimum Packing Quantity	3000
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17

Product Description

LQM Series 1008 1.5 uH ±20 % Tol. 1.5 A SMT High Frequency Multilayer Inductor
