LQP03TG2N7B02D - muRata

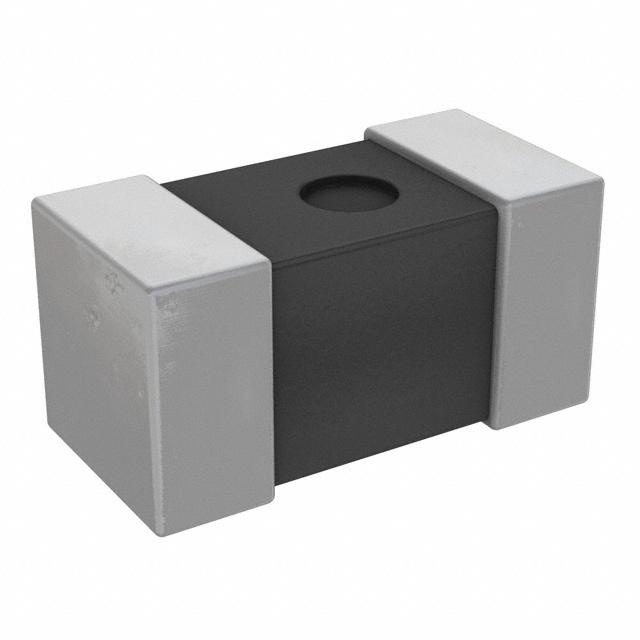

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

LQP03TG2N7B02D
Manufacturer

muRata
ChipWorker Part#

CW3815071
Category

Inductor Surface Mount
Package

0201
Description

0201 2.7nH ±0.1nH
Documentation

Datasheet

LQP03TG2N7B02D Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

LQP03TG2N7B02D Specifications

Attribute	Attribute Value

Part Number	LQP03TG2N7B02D
Manufacturer	muRata
ChipWorker Part#	CW3815071
Category	Inductor Surface Mount
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	0201
Current Rating	450 mA
Inductance	0.0027 µH
Self Resonant Frequency	11000 MHz
Part Family	LQP
Inductance Tolerance	±0.1 nH
Test Frequency	500 MHz
DC Resistance (DCR)	≤250 mΩ
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Resistance (DC Max)	0.25 Ω
	expand all
Size-Length	0.6 mm
Size-Width	0.3 mm
Size-Height	0.33 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
Minimum Packing Quantity	15000
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

2.7nH Unshielded Thick Film Inductor 450mA 250mOhm Max 0201 (0603 Metric)
