LQW15AN13NG00D - muRata

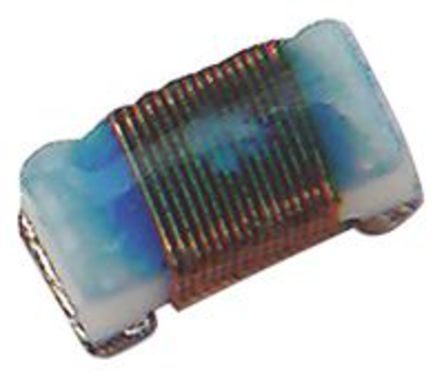

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

LQW15AN13NG00D
Manufacturer

muRata
ChipWorker Part#

CW3947604
Category

Inductor
Package

0402
Description

0402 13nH ±2%
Documentation

Datasheet

LQW15AN13NG00D Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

LQW15AN13NG00D Specifications

Attribute	Attribute Value

Part Number	LQW15AN13NG00D
Manufacturer	muRata
ChipWorker Part#	CW3947604
Category	Inductor
Documentation	Datasheet
Mounting Style	Surface Mount
Case/Package (SI)	1005
Case/Package	0402
Current Rating	430 mA
Capacitance Tolerance	±2 %
Inductance	13 nH
Self Resonant Frequency	5 GHz
Part Family	LQW
Inductance Tolerance	±2 %
Test Frequency	100 MHz
DC Resistance (DCR)	≤210 mΩ
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Resistance (DC Max)	210 mΩ
	expand all
Size-Length	1 mm
Size-Width	0.5 mm
Size-Height	0.5 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
Minimum Packing Quantity	10000
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

13nH Unshielded Wirewound Inductor 430mA 210mOhm Max 0402 (1005 Metric)
