LSM303AGRTR - ST Microelectronics

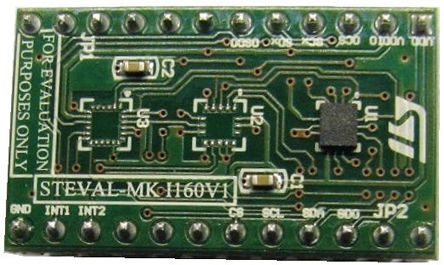

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

LSM303AGRTR
Manufacturer

ST Microelectronics
ChipWorker Part#

CW1808504
Category

Motion Sensor
Package

LGA-12
Description

eCompass Module Digital Output 1.8V/2.5V/3.3V 12Pin LGA T/R
Documentation

Datasheet

LSM303AGRTR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

LSM303AGRTR Specifications

Attribute	Attribute Value

Part Number	LSM303AGRTR
Manufacturer	ST Microelectronics
ChipWorker Part#	CW1808504
Category	Motion Sensor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	12 Pin
Case/Package	LGA-12
Number of Positions	12 Position
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	1.71 V
	expand all
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

The LSM303AGR is an ultra-low-power high-performance system-in-package featuring a 3D digital linear acceleration sensor and a 3D digital magnetic sensor.
The LSM303AGR has linear acceleration full scales of ±2g/±4g/±8g/±16g and a magnetic field dynamic range of ±50 gauss.
The LSM303AGR includes an I2C serial bus interface that supports standard, fast mode, fast mode plus, and high-speed (100 kHz, 400 kHz, 1 MHz, and 3.4 MHz) and an SPI serial standard interface.
The system can be configured to generate an interrupt signal for free-fall, motion detection and magnetic field detection.
The magnetic and accelerometer blocks can be enabled or put into power-down mode separately.
The LSM303AGR is available in a plastic land grid array package (LGA) and is guaranteed to operate over an extended temperature range from -40 °C to +85 °C.
**Key Features**
3 magnetic field channels and 3 acceleration channels
±50 gauss magnetic dynamic range
±2/±4/±8/±16 g selectable acceleration full scales
16-bit data output
SPI / I2 C serial interfaces
Analog supply voltage 1.71 V to 3.6 V
Selectable power mode/resolution for accelerometer and magnetometer
Single measurement mode for magnetometer
Programmable interrupt generators for free-fall, motion detection and magnetic field detection
Embedded self-test
Embedded temperature sensor
Embedded FIFO
ECOPACK® , RoHS and “Green” compliant
