LSN1A - Honeywell

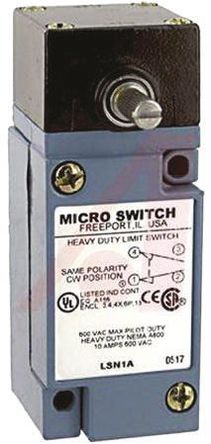

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

LSN1A
Manufacturer

Honeywell
ChipWorker Part#

CW54591246
Category

Switch
Description

Switch Limit N.O./N.C. SPDT Side Rotary Conduit 10A 24VDC Rotary Screw Mount Automotive
Documentation

Datasheet

LSN1A Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

LSN1A Specifications

Attribute	Attribute Value

Part Number	LSN1A
Manufacturer	Honeywell
ChipWorker Part#	CW54591246
Category	Switch
Documentation	Datasheet
Mounting Style	Plug In
Actuator Type	Side Rotary
Current Rating	10.0 A
Contacts Type	SPDT-NO
Contact Current Rating	10.0 A
Current Rating (Max)	10A @24VDC
Operating Temperature (Max)	121 ℃
Operating Temperature (Min)	-1 ℃
Voltage Rating	600 VAC
Voltage Rating (DC Max)	24 V
	expand all
Size-Length	106.78 mm
Size-Width	1.62 in
Size-Height	106.78 mm
Operating Temperature	-1℃ ~ 121℃
Housing Material	Zinc Die-Cast
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
HTS Code	8536509040
ECCN Code	EAR99

Product Description

MICRO SWITCH™ heavy-duty limit switches include boss-and-socket head design for secure head-to-body retention, unique all-metal drive train for consistent operating characteristics. Self-lifting pressure plate terminals save wiring time, easily identified grounding terminal (inside) for compliance with OSHA and other regulatory agency standards. One piece flat gasket does not contact terminal pins to reduce chances of fluid migration. Front mounting and interchangeability of single- and double-pole switches, plug-in and non plug-in with one another and with other switch brands. Twin shaft seals for an extra measure of protection, inner O-ring seal, outer Buna-N seal (all FC available,) FC shaft and diaphragm seals on side rotary switches. Rugged corrosion-resistant zinc head and body are phosphate treated and epoxy finished. Exclusive teller tab assures proper torque (when it cannot be moved the lever is tight enough to prevent slippage). Domestic and international conduit taps available.
