LT6222 - Linear Technology

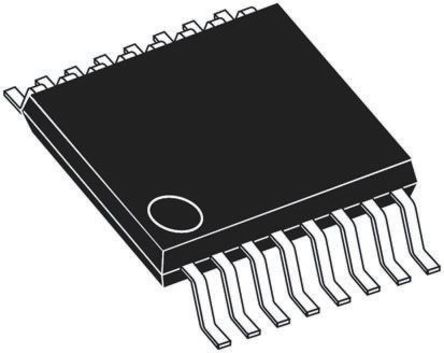

The pictures are for reference only, and the specific specifications can be found in the product manual.
-
Part NoLT6222
-
ManufacturerLinear Technology
-
ChipWorker Part#CW543629867
-
RoHSLead free / RoHS Compliant
-
DescriptionSingle/Dual/Quad 60MHz, 20V/µs Low Power, Rail-to-Rail Input and Output Precision Op Amp
-
DocumentationDatasheet
LT6222 Global Supplier
{{ estimate }}
| {{ supplierTable.supplier }} | {{ supplierTable.part }} | {{ supplierTable.availability }} | {{ supplierTable.delivery_date }} | {{ supplierTable.price1 }} {{ supplierCurrent }} {{supplierTable.price2}} | {{ supplierTable.buy }} | ||||
|---|---|---|---|---|---|---|---|---|---|
|
{{ skuList.vendorName }}
|
{{ skuList.part_no }}
{{ skuList.mfrEn }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
MOQ:{{ skuList.moq }}
|
{{ skuList.factoryLeadDays }}
{{delivery_date}}
6 {{delivery_date}}
|
{{ formatQuantity(priceList.quantity) }}
{{ ToEffectiveNum(priceList.price) }}
|
|
||||
|
{{viewMore}}
|
|||||||||
{{ apiText }}{{ apiTime }}(UTC+8)
LT6222 Specifications
| Attribute | Attribute Value |
|---|---|
| Part Number | LT6222 |
| Manufacturer | Linear Technology |
| ChipWorker Part# | CW543629867 |
| Documentation | Datasheet |
| expand all | |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
Product Description
- DESCRIPTION
- The LT® 6220/LT6221/LT6222 are single/dual/quad, low power, high speed rail-to-rail input and output operational amplifiers with excellent DC performance. The LT6220/LT6221/LT6222 feature reduced supply current, lower input offset voltage, lower input bias current and higher DC gain than other devices with comparable bandwidth.
- FEATURES
- ■ Gain Bandwidth Product: 60MHz
- ■ Input Common Mode Range Includes Both Rails
- ■ Output Swings Rail-to-Rail
- ■ Low Quiescent Current: 1mA Max
- ■ Input Offset Voltage: 350µV Max
- ■ Input Bias Current: 150nA Max
- ■ Wide Supply Range: 2.2V to 12.6V
- ■ Large Output Current: 50mA Typ
- ■ Low Voltage Noise: 10nV√HzTyp
- ■ Slew Rate: 20V/µs Typ
- ■ Common Mode Rejection: 102dB Typ
- ■ Power Supply Rejection: 105dB Typ
- ■ Open-Loop Gain: 100V/mV Typ
- ■ Operating Temperature Range: – 40°C to 85°C
- ■ Single in the 8-Pin SO and 5-Pin Low Profile(1mm) ThinSOTTM Packages
- ■ Dual in the 8-Pin SO and (3mm x 3mm) DFN Packages
- ■ Quad in the 16-Pin SSOP Package
- APPLICATIONS
- ■ Low Voltage, High Frequency Signal Processing
- ■ Driving A/D Converters
- ■ Rail-to-Rail Buffer Amplifiers
- ■ Active Filters
- ■ Video Amplifiers
- ■ Fast Current Sensing Amplifiers
