M34S75C4F1 - JAE Electronics

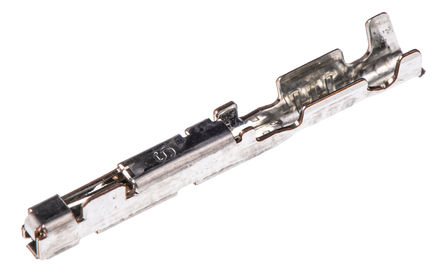

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

M34S75C4F1
Manufacturer

JAE Electronics
ChipWorker Part#

CW3551240
Category

Connector Accessory
Package

-
Description

025 FEMALE TERMINAL MSP1R
Documentation

Datasheet

M34S75C4F1 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	-	6 - 8 {{delivery_date}}

M34S75C4F1 Specifications

Attribute	Attribute Value

Part Number	M34S75C4F1
Manufacturer	JAE Electronics
ChipWorker Part#	CW3551240
Category	Connector Accessory
Documentation	Datasheet
Case/Package	-
Gender	Female
Wire Gauge	22AWG ~ 24AWG
Contact Plating	Tin
Current Rating	3.00 A
Number of Rows	01 Row
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Maximum Contact Resistance (Max)	5 mΩ
	expand all
Size-Length	17.75 mm
Size-Width	2.6 mm
Size-Height	2.6 mm
Contact Material	Copper
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
HK STC License	NLR

Product Description

Socket Contact Tin 22-24 AWG Crimp
