MAX1720EUTG - ON Semiconductor

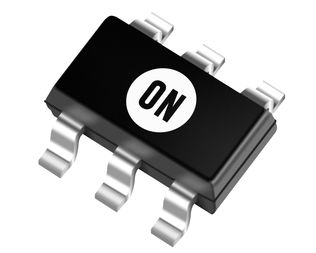

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

MAX1720EUTG
Manufacturer

ON Semiconductor
ChipWorker Part#

CW3644696
Category

DC to DC Converter
Package

TSOT-23-6
Description

ON SEMICONDUCTOR MAX1720EUTG DC-DC Adjustable Charge Pump Voltage Converter, 1.15V to 5.5V in, -5.5V to -1.15V/50mA out, TSOP-6
Documentation

Datasheet

MAX1720EUTG Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

MAX1720EUTG Specifications

Attribute	Attribute Value

Part Number	MAX1720EUTG
Manufacturer	ON Semiconductor
ChipWorker Part#	CW3644696
Category	DC to DC Converter
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	TSOT-23-6
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Output Voltage	-5.50 V (min)
Output Current	50 mA
Supply Current	0.09 mA
Number of Positions	6 Position
Power Dissipation	0.313 W
Switching Frequency	12 kHz
Input Voltage (Max)	5.5 V
Input Voltage (Min)	1.15 V
Output Voltage (Max)	0.3 V
Output Current (Max)	100 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	313 mW
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	1.15 V
Input Voltage	1.15V ~ 5.5V
	expand all
Size-Length	3.1 mm
Size-Width	1.7 mm
Size-Height	1 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
HK STC License	NLR

Product Description

The MAX1720EUTG is a CMOS charge pump switched capacitor Voltage Inverter with shutdown designed for operation over an input voltage range of 1.15 to 5.5V with an output current capability in excess of 50mA. The operating current consumption is only 67A and a power saving shutdown input is provided to further reduce the current to a mere 0.4A. The device contains a 12kHz oscillator that drives four low resistance MOSFET switches, yielding a low output resistance of 26R and a voltage conversion efficiency of 99%. This device requires only two external 10µF capacitors for a complete inverter making it an ideal solution for numerous batteries powered and board level applications.
67µA Low current consumption
0.4µA Power saving shutdown input for a reduced current
26R Low output resistance
