MAX222CPN - Maxim Integrated

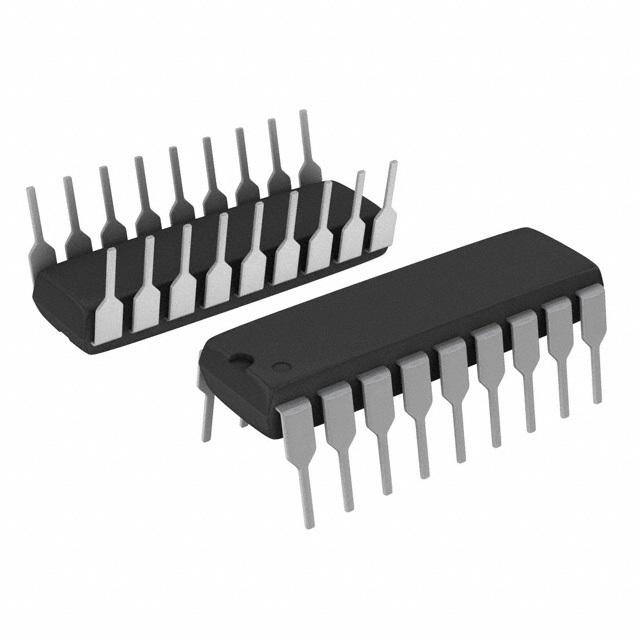

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

MAX222CPN
Manufacturer

Maxim Integrated
ChipWorker Part#

CW120393933
Category

Interface IC, Interface Controller
Package

DIP-18
Description

Dual Transmitter/Receiver RS-232 18Pin PDIP N
Documentation

Datasheet

MAX222CPN Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

MAX222CPN Specifications

Attribute	Attribute Value

Part Number	MAX222CPN
Manufacturer	Maxim Integrated
ChipWorker Part#	CW120393933
Category	Interface IC, Interface Controller
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	18 Pin
Case/Package	DIP-18
Supply Voltage (DC)	4.50V (min)
Supply Current	15.0 µA
Data Rate	200 kbps
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	4.5V ~ 5.5V
	expand all
Size-Length	23.24 mm
Size-Width	7.87 mm
Size-Height	4.45 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead

Product Description

General Description
The MAX220–MAX249 family of line drivers/receivers is intended for all EIA/TIA-232E and V.28/V.24 communications interfaces, particularly applications where ±12V is not available.
These parts are especially useful in battery-powered systems, since their low-power shutdown mode reduces power dissipation to less than 5µW. The MAX225, MAX233, MAX235, and MAX245/MAX246/MAX247 use no external components and are recommended for applications where printed circuit board space is critical.
Next-Generation Device Features
♦ For Low-Voltage, Integrated ESD Applications
MAX3222E/MAX3232E/MAX3237E/MAX3241E/
MAX3246E: +3.0V to +5.5V, Low-Power, Up to
1Mbps, True RS-232 Transceivers Using Four
0.1µF External Capacitors (MAX3246E Available
in a UCSP™ Package)
♦ For Low-Cost Applications
MAX221E: ±15kV ESD-Protected, +5V, 1µA,
Single RS-232 Transceiver with AutoShutdown™
Applications
Portable Computers
Low-Power Modems
Interface Translation
Battery-Powered RS-232 Systems
Multidrop RS-232 Networks
