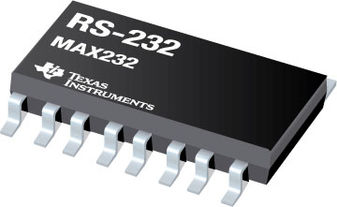

The pictures are for reference only, and the specific specifications can be found in the product manual.
-
Part NoMAX232DR
-
ManufacturerTI
-
ChipWorker Part#CW26450
-
CategoryInterface IC, Interface Controller
-
RoHSLead free / RoHS Compliant
-
DescriptionRS232 Transceiver IC, 2 Drivers, 120Kbps, 4.5V to 5.5V, SOIC-16
-
DocumentationDatasheet
