MAX3232CPE - Maxim Integrated

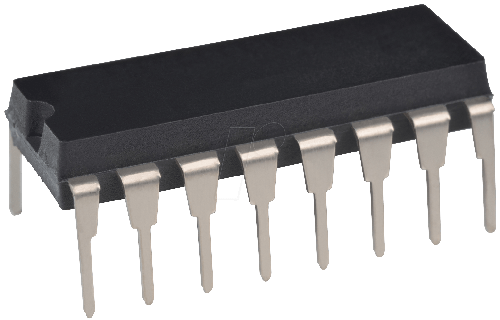

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

MAX3232CPE
Manufacturer

Maxim Integrated
ChipWorker Part#

CW47523063
Category

RS232, RS-232 Interface IC, Controller
Package

PDIP-16
Description

RS-232Interface IC 3V to 5.5V, Low-Power, up to 1Mbps, True RS-232 Transceivers Using Four 0.1F External Capacitors
Documentation

Datasheet

MAX3232CPE Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

MAX3232CPE Specifications

Attribute	Attribute Value

Part Number	MAX3232CPE
Manufacturer	Maxim Integrated
ChipWorker Part#	CW47523063
Category	RS232, RS-232 Interface IC, Controller
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	16 Pin
Case/Package	PDIP-16
Supply Voltage (DC)	3.00V (min)
Supply Current	300 µA
Data Rate	120 kbps
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	3V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	3 V
	expand all
Size-Length	19.43 mm
Size-Width	7.87 mm
Size-Height	4.45 mm
Product Lifecycle Status	Unknown
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
