MAX809SQ308T1G - ON Semiconductor

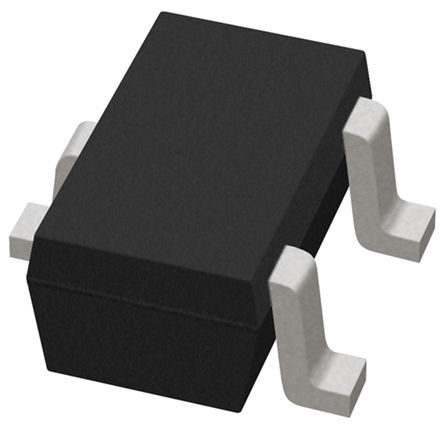

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

MAX809SQ308T1G
Manufacturer

ON Semiconductor
ChipWorker Part#

CW37594348
Category

Power Monitor
Package

SC-70-3
Description

Processor Supervisor 3.08V 1.2V to 4.9V 3Pin SC-70 T/R
Documentation

Datasheet

MAX809SQ308T1G Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

MAX809SQ308T1G Specifications

Attribute	Attribute Value

Part Number	MAX809SQ308T1G
Manufacturer	ON Semiconductor
ChipWorker Part#	CW37594348
Category	Power Monitor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SC-70-3
Supply Voltage (DC)	1.00V (min)
Halogen Free Status	Halogen Free
Supply Current	0.0025 mA
Number of Positions	3 Position
Threshold Voltage	3.08 V
Reset Threshold Voltage (Min)	3.04 V
Reset Threshold Voltage (Max)	3.11 V
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	1 V
	expand all
Size-Length	2.2 mm
Size-Width	1.35 mm
Size-Height	0.9 mm
Operating Temperature	-40℃ ~ 105℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

This MAX809SQ308T1G microprocessor supervisory circuit from ON Semiconductor works to keep your circuit safe if something happens to your main processor. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This part has a minimum operating temperature of -40 °C and a maximum of 105 °C. This device has a minimum operating supply voltage of 1.2 V and a maximum of 5.5 V. It has a typical reset threshold voltage of 3.08 V, with a minimum of 3.04 V and a maximum of 3.11 V.
