MBR1060G - ON Semiconductor

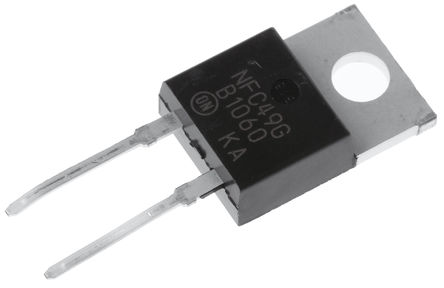

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

MBR1060G
Manufacturer

ON Semiconductor
ChipWorker Part#

CW7662042
Category

Schottky Diode
Package

TO-220-2
Description

Diode Schottky 60V 10A 2Pin(2+Tab) TO-220AC Rail
Documentation

Datasheet

MBR1060G Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

MBR1060G Specifications

Attribute	Attribute Value

Part Number	MBR1060G
Manufacturer	ON Semiconductor
ChipWorker Part#	CW7662042
Category	Schottky Diode
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	TO-220-2
Voltage Rating (DC)	60.0 V
Current Rating	10.0 A
Output Current	≤10.0 A
Load Current	10 A
Number of Positions	2 Position
Forward Voltage	800mV @10A
Polarity	Standard
Thermal Resistance	2℃/W (RθJC)
Forward Current	10 A
Max Forward Surge Current (Ifsm)	150 A
Maximum Forward Voltage (Max)	800 mV
Forward Current (Max)	10 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature (Max)	175 ℃
	expand all
Size-Length	10.29 mm
Size-Width	4.82 mm
Size-Height	9.27 mm
Operating Temperature	-65℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
ECCN Code	EAR99

Product Description

The MBR1060G is a SWITCHMODE™ Schottky Barrier Power Rectifier with moulded epoxy case.
All external surfaces corrosion-resistant
Guard-ring for stress protection
Low forward voltage
Low power loss/high efficiency
High surge capacity
Low stored charge majority carrier conduction
