MBRB1545CTG - ON Semiconductor

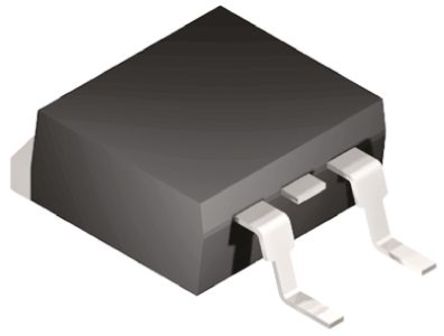

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

MBRB1545CTG
Manufacturer

ON Semiconductor
ChipWorker Part#

CW17290939
Category

Schottky Diode
Package

TO-263-3
Description

ON SEMICONDUCTOR MBRB1545CTG Schottky Rectifier, 45V, 15A, Dual Common Cathode, TO-263, 3Pins, 840mV
Documentation

Datasheet

MBRB1545CTG Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

MBRB1545CTG Specifications

Attribute	Attribute Value

Part Number	MBRB1545CTG
Manufacturer	ON Semiconductor
ChipWorker Part#	CW17290939
Category	Schottky Diode
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-263-3
Voltage Rating (DC)	45.0 V
Current Rating	15.0 A
Halogen Free Status	Halogen Free
Number of Positions	3 Position
Forward Voltage	0.84 V
Forward Current	15 A
Max Forward Surge Current (Ifsm)	150 A
Maximum Forward Voltage (Max)	840 mV
Forward Current (Max)	15 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature (Max)	175 ℃
	expand all
Size-Length	10.29 mm
Size-Width	9.65 mm
Size-Height	4.83 mm
Operating Temperature	-65℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

The MBRB1545CTG is a D²PAK surface mount power Rectifier Diode with UL94V-0 flame-rated epoxy moulded case and all external surfaces corrosion resistant and terminal leads are readily solderable finish. The rectifier diode uses the Schottky barrier principle with a platinum barrier metal.
Centre-tap configuration
Guarding for stress protection
Low forward voltage
260°C Maximum for 10 seconds lead and mounting surface temperature for soldering purposes
AEC-Q101 Qualified and PPAP capable
ESD sensitive device, take proper precaution while handling the device.
