MBRM1H100T3G - ON Semiconductor

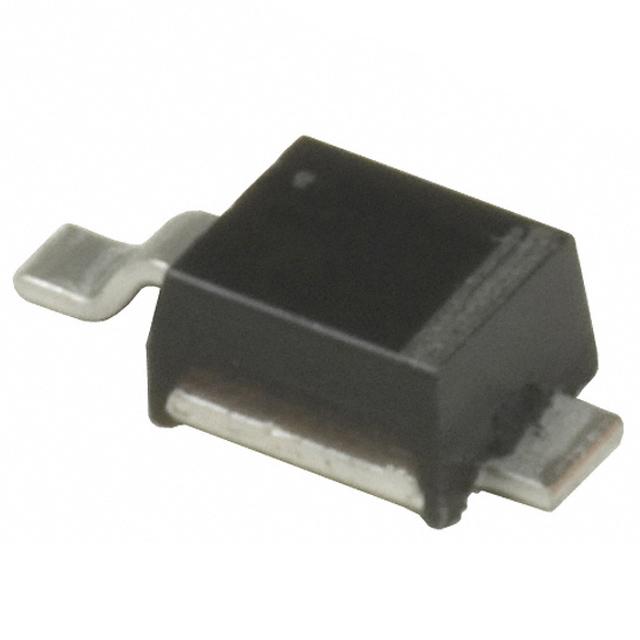

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

MBRM1H100T3G
Manufacturer

ON Semiconductor
ChipWorker Part#

CW73129600
Category

Schottky Diode
Package

DO-216AA
Description

ON SEMICONDUCTOR MBRM1H100T3G Schottky Rectifier, 100V, 1A, Single, DO-216AA, 2Pins, 840mV
Documentation

Datasheet

MBRM1H100T3G Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

MBRM1H100T3G Specifications

Attribute	Attribute Value

Part Number	MBRM1H100T3G
Manufacturer	ON Semiconductor
ChipWorker Part#	CW73129600
Category	Schottky Diode
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	DO-216AA
Halogen Free Status	Halogen Free
Number of Positions	2 Position
Forward Voltage	760mV @1A
Forward Current	1 A
Max Forward Surge Current (Ifsm)	50 A
Maximum Forward Voltage (Max)	840 mV
Forward Current (Max)	1000 mA
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
	expand all
Operating Temperature	-65℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17

Product Description

Diode Schottky 100V 1A Surface Mount Powermite
