MBRS130 - ON Semiconductor

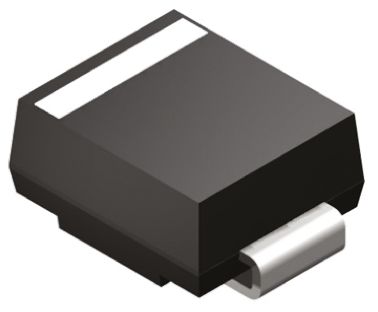

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

MBRS130
Manufacturer

ON Semiconductor
ChipWorker Part#

CW33241545
Category

Schottky Diode
Package

DO-214AA
Description

30V 1A 0.6V
Documentation

Datasheet

MBRS130 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

MBRS130 Specifications

Attribute	Attribute Value

Part Number	MBRS130
Manufacturer	ON Semiconductor
ChipWorker Part#	CW33241545
Category	Schottky Diode
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	DO-214AA
Number of Positions	2 Position
Forward Voltage	0.6 V
Thermal Resistance	12℃/W (RθJL)
Max Repetitive Reverse Voltage (Vrrm)	30V
Forward Current	1 A
Max Forward Surge Current (Ifsm)	40 A
Maximum Forward Voltage (Max)	550 mV
Forward Current (Max)	1 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-65 ℃
	expand all
Size-Length	4.75 mm
Size-Width	3.95 mm
Size-Height	2.45 mm
Operating Temperature	-65℃ ~ 125℃
Product Lifecycle Status	Unknown
Packaging	Tape & Reel (TR)
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free

Product Description

The MBRS130 is a compact surface-mount Schottky Barrier Rectifier with J-bend leads (SMB).
Colour band denotes cathode
