MC33161DR2G - ON Semiconductor

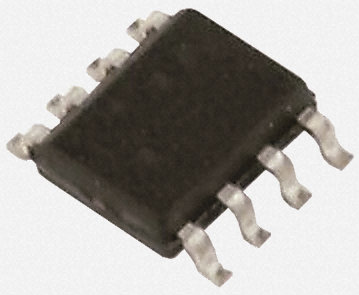

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

MC33161DR2G
Manufacturer

ON Semiconductor
ChipWorker Part#

CW1604748
Category

Power Monitor
Package

SOIC-8
Description

Processor Supervisor 1.27V 1 Active Low 8Pin SOIC N T/R
Documentation

Datasheet

MC33161DR2G Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

MC33161DR2G Specifications

Attribute	Attribute Value

Part Number	MC33161DR2G
Manufacturer	ON Semiconductor
ChipWorker Part#	CW1604748
Category	Power Monitor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Supply Voltage (DC)	2.00V (min)
Current Rating	20.0 mA
Halogen Free Status	Halogen Free
Output Voltage	2.6V ~ 2.48V
Supply Current	0.9 mA
Number of Positions	8 Position
Power Dissipation	0.45 W
Threshold Voltage	1.27 V
Reset Threshold Voltage (Min)	1.245 V
Reset Threshold Voltage (Max)	1.295 V
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	450 mW
Supply Voltage (Max)	40 V
Supply Voltage (Min)	2 V
	expand all
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 105℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

The MC33161DR2G is an universal Voltage Monitor intended for use in a wide variety of voltage sensing applications. This device offers the circuit designer an economical solution for positive and negative voltage detection. The circuit consists of two comparator channels each with hysteresis, unique mode select input for channel programming, a pinned out 2.54V reference and two open collector outputs capable of sinking in excess of 10mA. Each comparator channel can be configured as either inverting or non-inverting by the mode select input. This allows over, under and window detection of positive and negative voltages. The minimum supply voltage needed for this device to be fully functional is 2V for positive voltage sensing and 4V for negative voltage sensing.
