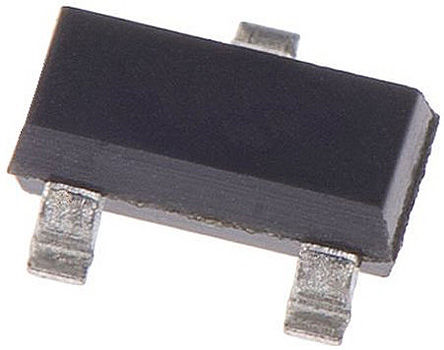

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

MC78PC33NTRG
Manufacturer

ON Semiconductor
ChipWorker Part#

CW9865365
Category

Voltage Regulator
Package

TSOT-23-5
Description

ON SEMICONDUCTOR MC78PC33NTRG Fixed LDO Voltage Regulator, 4.3V to 9V In, 200mV Dropout, 3.3V/150mA Out, SOT-23-5
Documentation

Datasheet

MC78PC33NTRG Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

MC78PC33NTRG Specifications

Attribute	Attribute Value

Part Number	MC78PC33NTRG
Manufacturer	ON Semiconductor
ChipWorker Part#	CW9865365
Category	Voltage Regulator
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	TSOT-23-5
Operating Voltage	0V ~ 8V
Current Rating	150 mA
Power Rating	250 mW
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Input Voltage (DC)	9.00V (max)
Output Voltage	3.3 V
Output Current	150 mA
Number of Positions	5 Position
Polarity	P-Channel
Power Dissipation	250 mW
Quiescent Current	1 µA
voltage rating	200 mV
Input Voltage (Max)	8 V
Input Voltage (Min)	4.3 V
Output Voltage (Min)	3.3 V
Output Current (Max)	150 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	250 mW
Accuracy	±2 %
Supply Voltage	8 V
Input Voltage	≤8 V
	expand all
Size-Length	3 mm
Size-Width	1.8 mm
Size-Height	1.3 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2016/06/20
ECCN Code	EAR99

Product Description

The MC78PC33NTRG is a 3.3V fixed output CMOS Linear Regulator with high output voltage accuracy, low supply current, low-dropout (LDO) voltage and high ripple rejection. The device consists of an internal voltage reference, an error amplifier, resistors, a current limiting circuit and a chip enable circuit. The dynamic Response to line and load is fast, which makes these products ideally suited for use in hand-held communication equipment.
Ultra-low supply current - Typical 35µA in ON mode with no load
0.1µA Standby mode (typical)
High ripple rejection - typical 70dB at f = 1kHz
±100ppm/°C Low temperature-drift coefficient of output voltage (typical)
0.05%/V Excellent line regulation (typical)
±2% High accuracy output voltage
Fast dynamic response to line and load
Built-in chip enable circuit (CE input pin)

expand all
