MCZ0806AH900L2TA0G - TDK

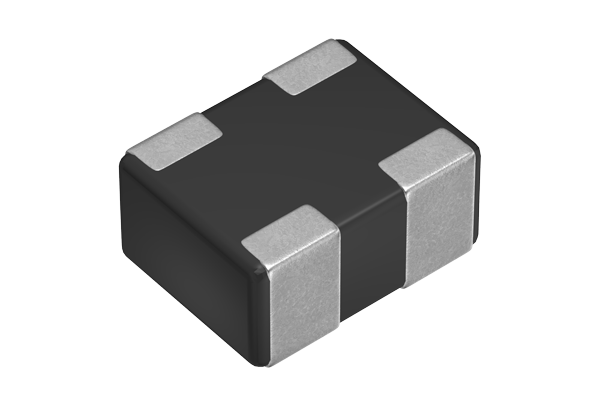

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

MCZ0806AH900L2TA0G
Manufacturer

TDK
ChipWorker Part#

CW623021
Category

Filter
Package

0302
Description

Common Mode Chokes Dual 90Ω 100MHz 100mA 2.7Ω DCR SMD
Documentation

Datasheet

MCZ0806AH900L2TA0G Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

MCZ0806AH900L2TA0G Specifications

Attribute	Attribute Value

Part Number	MCZ0806AH900L2TA0G
Manufacturer	TDK
ChipWorker Part#	CW623021
Category	Filter
Documentation	Datasheet
Mounting Style	Surface Mount
Case/Package	0302
Voltage Rating (DC)	5 V
Current Rating	100 mA
Resistance	90 Ω
Test Frequency	100 MHz
DC Resistance (DCR)	4 Ω
Current Rating (Max)	100 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	5 VDC
Resistance (DC Max)	4 Ω
	expand all
Size-Height	0.50 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

2 Line Common Mode Choke Surface Mount 90 Ohms @ 100MHz 100mA DCR 4Ohm
