MEA1D2412SC - muRata

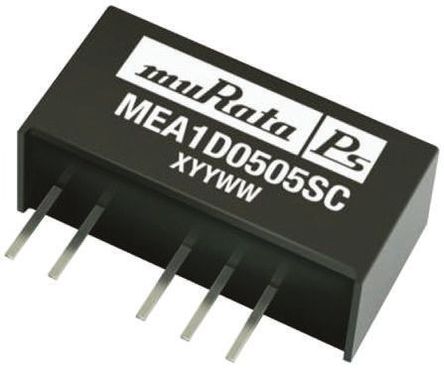

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

MEA1D2412SC
Manufacturer

muRata
ChipWorker Part#

CW9570645
Category

DC to DC Converter, DC/DC Converter
Package

SIP-7
Description

Module DC-DC 24Vin 2Out 12V/-12V 0.042A/-0.042A 1W 5Pin SIP Tube
Documentation

Datasheet

MEA1D2412SC Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

MEA1D2412SC Specifications

Attribute	Attribute Value

Part Number	MEA1D2412SC
Manufacturer	muRata
ChipWorker Part#	CW9570645
Category	DC to DC Converter, DC/DC Converter
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	5 Pin
Case/Package	SIP-7
Supply Voltage (DC)	24.0 V
Power Rating	1 W
Number of Outputs	2 Output
Input Voltage (DC)	21.6V ~ 26.4V
Output Voltage	±12 V
Output Current	42 mA
Output Power	1 W
Isolation Voltage	1 kV
Input Voltage (Max)	26.4 V
Input Voltage (Min)	21.6 V
Input Voltage (DC Max)	26.4 V
Input Voltage (DC Min)	21.6 v
Output Current (Max)	42mA, 42mA
Input Power (Max)	1 W
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	24 V
Input Voltage	21.6V ~ 26.4V
	expand all
Size-Length	19.65 mm
Size-Width	6.15 mm
Size-Height	10.15 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17

Product Description

The MEA1D2412SC is a 2-output 1W board-mount isolated DC/DC Converter with high performance and more efficient. The device offers improved regulation performance
No heat sink required
Industry standard pin-out
Power sharing on output
Fully encapsulated with toroidal magnetics
No external components required
No electrolytic or tantalum capacitors
Power density to 0.85W/cm³
2.5% Maximum load regulation
20mVp-p Maximum ripple and noise
87% Typical efficiency
85pF Isolation capacitance
