MFR4310E1MAE40 - NXP

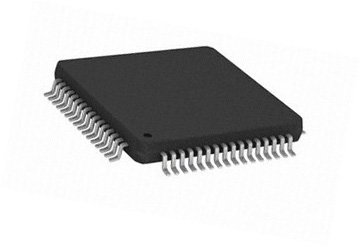

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

MFR4310E1MAE40
Manufacturer

NXP
ChipWorker Part#

CW63052823
Category

Microcontroller, MCU IC
Package

LQFP-64
Description

Communication Controller 64Pin LQFP
Documentation

Datasheet

MFR4310E1MAE40 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

MFR4310E1MAE40 Specifications

Attribute	Attribute Value

Part Number	MFR4310E1MAE40
Manufacturer	NXP
ChipWorker Part#	CW63052823
Category	Microcontroller, MCU IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	64 Pin
Case/Package	LQFP-64
Halogen Free Status	Halogen Free
Number of Positions	64 Position
Number of Inputs and Outputs	23 Input IO
Supply Voltage (Max)	2.75 V
Supply Voltage (Min)	2.25 V
	expand all
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Not Recommended for New Designs
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

Overview
FlexRay™ networking is a next-generation automotive communication protocol featuring high bandwidth, determinism, and fault tolerance.
The NXP ® MFR4310 stand-alone FlexRay controller eases the integration of FlexRay communication in applications using MCUs without an embedded FlexRay controller.
* Provides high-speed deterministic distributed control for advanced automotive applications
* Communicates directly with the S12X family of 16-bit MCUs, and the MPC500 and MPC5500 families of 32-bit MCUs
* Offers system-wide redundancy to meet reliability requirements of emerging safety systems
* Complies with FlexRay Consortium Specification v2.1A
MoreLess
## Features
* Conforms to FlexRay Communications System Protocol Specification V2.1A
* Variable bit rate support: 2.5, 5, 8, or 10 Mb/s
* 128 configurable message buffers
* Message buffer header, status and payload data are stored in 6 KB of on-chip system memory
* Two independent message buffer segments with configurable size of payload data section
* Transmit message buffers configurable with state/event semantics
* Individual message buffer reconfiguration supported
* Two independent receive FIFOs
* 4 configurable slot error counters
* 4 dedicated slot status indicators
* 1 absolute timer
* 1 timer that can be configured to absolute or relative
