MGSF1P02LT1 - ON Semiconductor

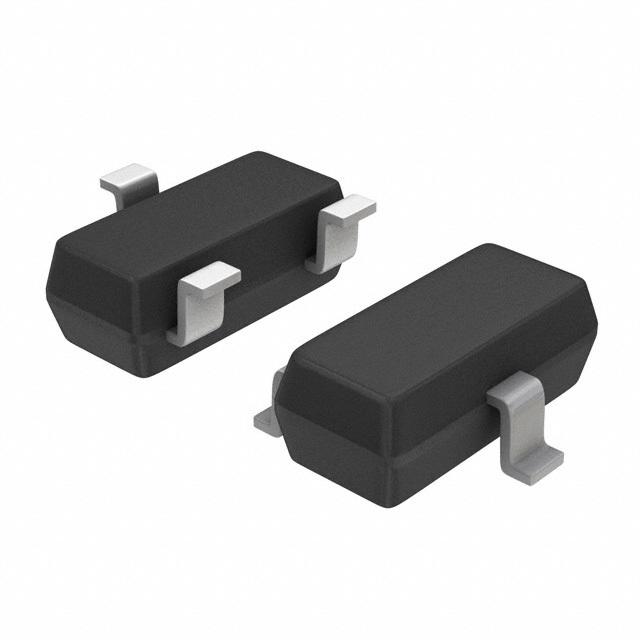

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

MGSF1P02LT1
Manufacturer

ON Semiconductor
ChipWorker Part#

CW109954446
Category

MOSFET, MOSFET Transistor
Package

SOT-23-3
Description

Trans MOSFET P-CH 20V 0.75A 3Pin SOT-23 T/R
Documentation

Datasheet

MGSF1P02LT1 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

MGSF1P02LT1 Specifications

Attribute	Attribute Value

Part Number	MGSF1P02LT1
Manufacturer	ON Semiconductor
ChipWorker Part#	CW109954446
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-23-3
Power Dissipation	400mW (Ta)
Drain to Source Voltage (Vds)	20 V
Input Capacitance (Ciss)	130pF @5V(Vds)
Power Dissipation (Max)	400mW (Ta)
	expand all
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Tape & Reel (TR)
RoHS	Non-Compliant
Lead-Free Status	Contains Lead

Product Description

Power MOSFET 750 mAmps, 20 Volts P–Channel SOT–23 These miniature surface mount MOSFETs low RDS(on) assure minimal power loss and conserve energy, making these devices ideal for use in space sensitive power management circuitry. Typical applications are dc–dc converters and power management in portable and battery–powered products such as computers, printers, PCMCIA cards, cellular and cordless telephones. • Low RDS(on) Provides Higher Efficiency and Extends Battery Life • Miniature SOT–23 Surface Mount Package Saves Board Space
