MIC4427ZM - Microchip

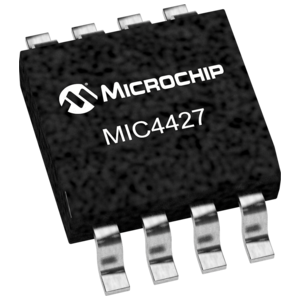

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

MIC4427ZM
Manufacturer

Microchip
ChipWorker Part#

CW22867869
Category

FET Driver
Package

SOIC-8
Description

MIC4427 Series 6Ω 1.5A SMT Dual Peak Low-Side MOSFET Driver - SOIC-8
Documentation

Datasheet

MIC4427ZM Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

MIC4427ZM Specifications

Attribute	Attribute Value

Part Number	MIC4427ZM
Manufacturer	Microchip
ChipWorker Part#	CW22867869
Category	FET Driver
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Supply Voltage (DC)	4.50V (min)
Rise/Fall Time	20ns, 29ns
Number of Outputs	2 Output
Number of Positions	8 Position
Rise Time	30 ns
Fall Time	20 ns
Fall Time (Max)	20 ns
Fall Time (Max)	30 ns
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	4.5V ~ 18V
Supply Voltage (Max)	18 V
Supply Voltage (Min)	4.5 V
	expand all
Operating Temperature	0℃ ~ 150℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
HTS Code	8542390001
ECCN Code	EAR99

Product Description

Driver 0.025V 1.5A 2-OUT Lo Side Non-Inv 8-Pin SOIC N Tube
