MMFT960T1G - ON Semiconductor

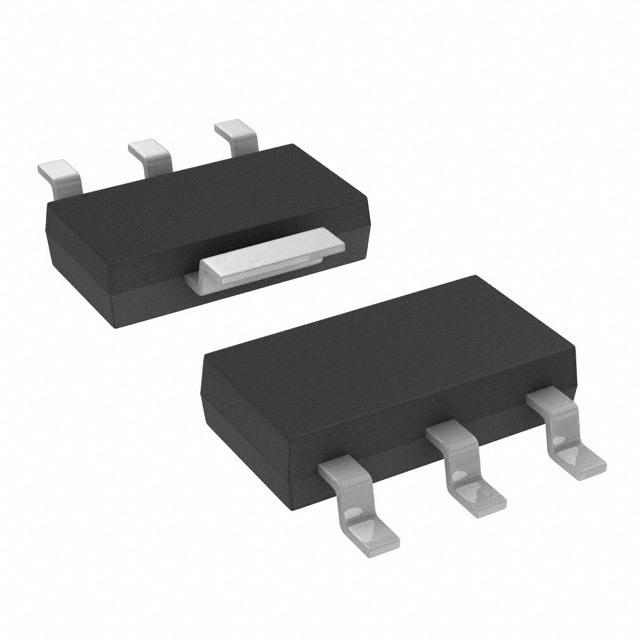

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

MMFT960T1G
Manufacturer

ON Semiconductor
ChipWorker Part#

CW74768296
Category

MOSFET, MOSFET Transistor
Package

TO-261-4
Description

SOT-223 N-CH 60V 0.3A
Documentation

Datasheet

MMFT960T1G Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

MMFT960T1G Specifications

Attribute	Attribute Value

Part Number	MMFT960T1G
Manufacturer	ON Semiconductor
ChipWorker Part#	CW74768296
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	TO-261-4
Voltage Rating (DC)	60.0 V
Current Rating	300 mA
Drain to Source Resistance (on) (Rds)	1.7 Ω
Polarity	N-Channel
Power Dissipation	0.8 W
Input Capacitance	65pF @25V
Drain to Source Voltage (Vds)	60 V
Breakdown Voltage (Drain to Source)	60 V
Breakdown Voltage (Gate to Source)	±30.0 V
Continuous Drain Current (Ids)	300 mA
Input Capacitance (Ciss)	65pF @25V(Vds)
Input Power (Max)	800 mW
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	800mW (Ta)
	expand all
Size-Length	6.7 mm
Size-Height	1.65 mm
Material	Silicon
Operating Temperature	-65℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

N-Channel 60V 300mA (Tc) 800mW (Ta) Surface Mount SOT-223
