MPU-6000 ,Acceleration Sensor, Accelerometer - InvenSense

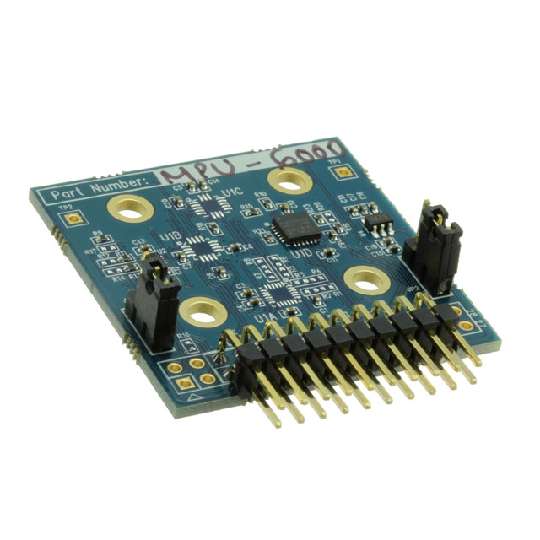

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

128 points

Part No

MPU-6000
Manufacturer

InvenSense
ChipWorker Part#

CW1618433
Category

Acceleration Sensor, Accelerometer
Package

QFN-24
Description

Accelerometer and Gyroscope Digital Output 2.5V/3.3V 24Pin QFN EP
Documentation

Datasheet
Ships from

Moscow
Наличие

191785 pcs In Stock
Estimated Price

$ 2.25

Buy MPU-6000

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

MPU-6000 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

MPU-6000 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	MPU-6000
Manufacturer	InvenSense
ChipWorker Part#	CW1618433
Category	Acceleration Sensor, Accelerometer
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	24 Pin
Case/Package	QFN-24
Supply Voltage (DC)	2.38V (min)
Number of Positions	24 Position
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	3.46 V
Supply Voltage (Min)	2.375 V
	expand all
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Not For New Designs
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15

Similar & Replacement Parts

Similar products

Product Description

The MPU-6000 incorporates InvenSense"s MotionFusion and run-time calibration firmware that enables manufacturers to eliminate the costly and complex selection, qualification, and system level integration of discrete devices in motion-enabled products, and guarantees that sensor fusion algorithms and calibration procedures deliver optimal performance for consumers. The MPU-6000 device combines a 3-axis gyroscope and a 3-axis accelerometer on the same silicon die together with an onboard Digital Motion Processor (DMP) capable of processing complex 9-axis MotionFusion algorithms. The parts" integrated 9-axis MotionFusion algorithms access external magnetometers or other sensors through an auxiliary master I2C bus, allowing the devices to gather a full set of sensor data without intervention from the system processor.
User-programmable digital filters for gyroscope, accelerometer, and temp sensor
Digital-output temperature sensor
9-Axis MotionFusion by the on-chip Digital Motion Processor (DMP)
Auxiliary master I2C and SPI bus for reading data from external sensors
Minimal cross-axis sensitivity between the accelerometer and gyroscope axes
MEMS structure hermetically sealed and bonded at wafer level
10,000 g shock tolerant
400kHz Fast Mode I2C for communicating with all registers
User-programmable interrupts
Orientation detection and signalling
1MHz SPI serial interface for communicating with all registers
20MHz SPI serial interface for reading sensor and interrupt registers
