MPX5100DP - NXP

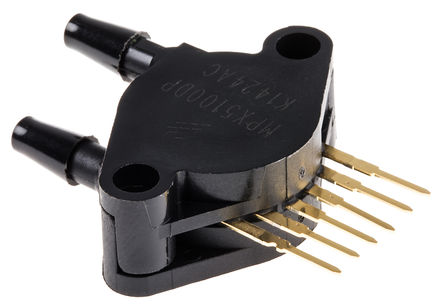

The pictures are for reference only, and the specific specifications can be found in the product manual.
-
Part NoMPX5100DP
-
ManufacturerNXP
-
ChipWorker Part#CW1891400
-
CategoryPressure Sensor
-
PackageSIP-6
-
DescriptionPressure Sensor, Differential, 45mV/kPa, 0 kPa, 100 kPa, 4.75V, 5.25V
-
DocumentationDatasheet
