MPX5700AP - NXP

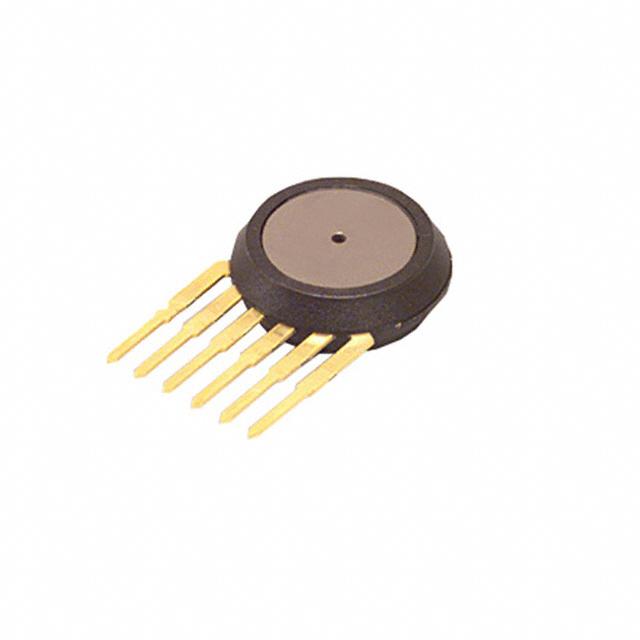

The pictures are for reference only, and the specific specifications can be found in the product manual.
-
Part NoMPX5700AP
-
ManufacturerNXP
-
ChipWorker Part#CW1488233
-
CategoryPressure Sensor
-
PackageSIP-6
-
DescriptionPressure Sensor 0.2V to 4.7V 15KPa to 700KPa Absolute 6Pin Case 867B-04 Tray
-
DocumentationDatasheet
