MPX5700DP - Freescale

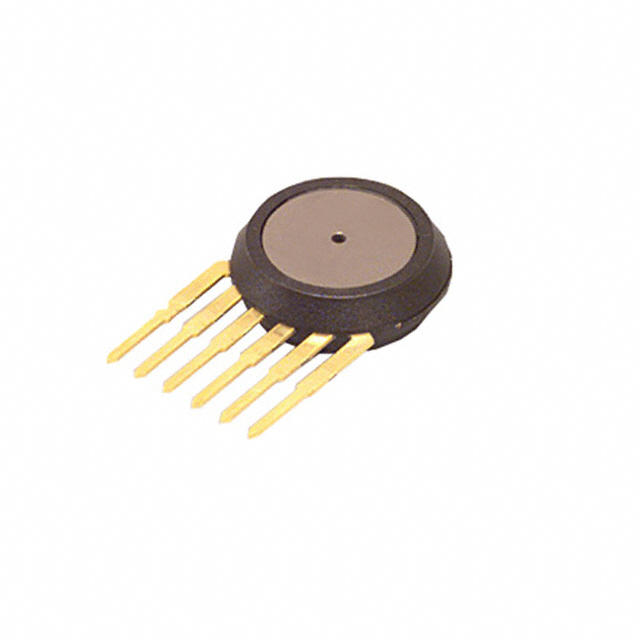

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

MPX5700DP
Manufacturer

Freescale
ChipWorker Part#

CW4335559
Category

Pressure Sensor
Package

SIP-6
Description

MPX5700 Series Dual 700 Kpa 5V 2.5% Analog Output Through Hole Pressure Sensor
Documentation

Datasheet

MPX5700DP Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

MPX5700DP Specifications

Attribute	Attribute Value

Part Number	MPX5700DP
Manufacturer	Freescale
ChipWorker Part#	CW4335559
Category	Pressure Sensor
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	6 Pin
Case/Package	SIP-6
Supply Voltage (DC)	5.00 V
Halogen Free Status	Not Halogen Free
Output Voltage	0.2V ~ 4.7V
Supply Current	7 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±2.5 %
Supply Voltage	4.75V ~ 5.25V
	expand all
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
