MSP430G2211IN14 - TI

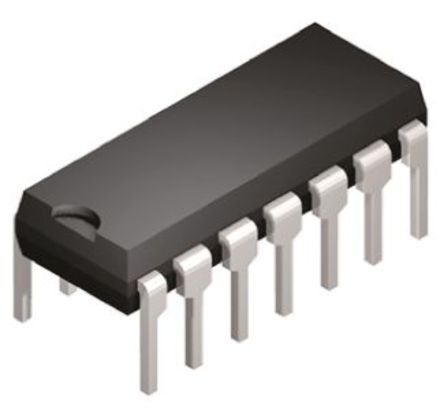

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

MSP430G2211IN14
Manufacturer

TI
ChipWorker Part#

CW12766762
Category

Microcontroller, MCU IC
Package

DIP-14
Description

TEXAS INSTRUMENTS MSP430G2211IN14 16Bit Microcontroller, Mixed Signal, MSP430G2xx, 16MHz, 2KB, 128Byte, 14Pins, DIP
Documentation

Datasheet

MSP430G2211IN14 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

MSP430G2211IN14 Specifications

Attribute	Attribute Value

Part Number	MSP430G2211IN14
Manufacturer	TI
ChipWorker Part#	CW12766762
Category	Microcontroller, MCU IC
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	14 Pin
Case/Package	DIP-14
Frequency	16 MHz
Supply Voltage (DC)	1.80V (min)
Number of Positions	14 Position
Clock Speed	16.0 MHz
RAM Memory Size	128 x 8
Number of Bits	16 Bit
FLASH Memory Size	2 KB
FRAM Memory Size	0 B
Number of Inputs and Outputs	10 Input IO
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	1.8 V
	expand all
Size-Length	19.3 mm
Size-Width	6.35 mm
Size-Height	5.08 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15

Product Description

description
The Texas Instruments MSP430 family of ultralow-power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes, is optimized to achieve extended battery life inportable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, andconstant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 1µs.
The MSP430G2x01/11 series is an ultralow-power mixed signal microcontroller with a built-in 16-bit timer and ten I/O pins. The MSP430G2x11 family members have a versatile analog comparator. For configuration details seeTable1. Typical applications include low-cost sensor systems thatcapture analog signals, convert them to digital values, and then process the data for display or for transmission to a host system.
Low Supply Voltage Range 1.8 V to 3.6 V
Ultralow Power Consumption
\- Active Mode: 220 µAat1MHz,2.2V
\- Standby Mode: 0.5 µA
\- Off Mode (RAM Retention): 0.1 µA
Five Power-Saving Modes
Ultrafast Wake-Up From Standby Mode in Less Than 1µs
16-Bit RISC Architecture, 62.5 ns Instruction Cycle Time
Basic Clock Module Configurations:
\- Internal Frequencies up to 16 MHz With One Calibrated Frequency
\- Internal Very Low Power LF Oscillator
\- 32-kHz Crystal
\- External Digital Clock Source
16-Bit Timer_A With Two Capture/Compare Registers
Brownout Detector
On-Chip Comparator for Analog Signal Compare Function or Slope A/D (See Table 1)
Serial Onboard Programming, No External Programming Voltage Needed Programmable Code Protection by Security Fuse
On-Chip Emulation Logic With Spy-Bi-Wire Interface
Family Members details see Table 1
Available in a 14-Pin Plastic Small-Outline Thin Package (TSSOP), 14-Pin Plastic Dual Inline Package (PDIP), and 16-Pin QFN
For Complete Module Descriptions, See the MSP430x2xx Family User’s Guide

expand all
