MUN5214T1G - ON Semiconductor

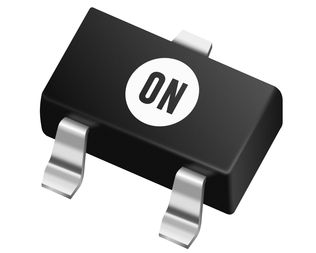

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

MUN5214T1G
Manufacturer

ON Semiconductor
ChipWorker Part#

CW10539414
Category

BJT Transistor, BJT
Package

SC-70-3
Description

SC-70 NPN 50V 100mA
Documentation

Datasheet

MUN5214T1G Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

MUN5214T1G Specifications

Attribute	Attribute Value

Part Number	MUN5214T1G
Manufacturer	ON Semiconductor
ChipWorker Part#	CW10539414
Category	BJT Transistor, BJT
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SC-70-3
Voltage Rating (DC)	50.0 V
Current Rating	100 mA
Halogen Free Status	Halogen Free
Polarity	NPN
Power Dissipation	0.31 W
Breakdown Voltage (Collector to Emitter)	50 V
Continuous Collector Current	100mA
hFE Min	80 @5mA, 10V
hFE Max	80
Input Power (Max)	202 mW
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	310 mW
	expand all
Size-Length	2.1 mm
Size-Width	1.24 mm
Size-Height	0.85 mm
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

Digital Transistors (BRT)
R1 = 10 kΩ, R2 = 47 kΩ
This series of digital transistors is designed to replace a single device and its external resistor bias network. The Bias Resistor Transistor (BRT) contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base−emitter resistor. The BRT eliminates these individual components by integrating them into a single device. The use of a BRT can reduce both system cost and board space.
Features
• Simplifies Circuit Design
• Reduces Board Space
• Reduces Component Count
• S and NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
